Description

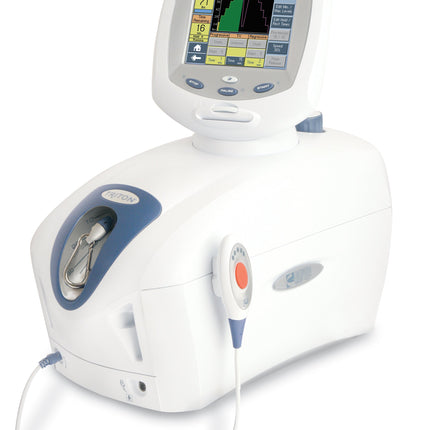

The Triton DTS Traction Unit addresses cervical and lumbar conditions by replicating the feel of hands-on therapy through fully programmable pull patterns. It is the traction head that drives Chattanooga's DTS (Decompression Traction System) treatment, mounting to the arm extension of a Triton DTS 6M or 6E table.
Features & Benefits
- 270° pivoting user interface with a digital touchscreen, readable from anywhere around the table
- Static, intermittent, and cyclic traction modes with customizable timing parameters
- Five unique pull patterns with independent timing for the pretension, progression, traction, and regression phases
- Variable speed control for patient comfort
- Full-color clinical graphics library with anatomical references and belting guidance
- Stores up to 80 user-defined protocols
- Patient Data Cards record treatment sessions and pain assessments to track progress
- Optional sEMG module and DTS software upgrades available
Technical Specifications
-
Dimensions: 9.5 in W × 17.5 in D × 17.5 in L
-
Unit weight: 30 lbs
-
Shipping weight: 40 lbs
-
Voltage: 100–240 V, 50/60 Hz
-
Power consumption: 75 VA
-
Current: Max 3.2 A
-
Duty cycle: Continuous operation
-
Electrical class: Class I, Type B
Buying the complete system
A complete Triton DTS setup is one table plus one accessory package. Chattanooga also supplies this traction unit inside its accessory packages:
-
Triton DTS Basic Accessory Package (8245) — Traction Unit, QuickWrap DTS Belt System (2825), Knee Bolster Set (42901)
-
Triton DTS Advanced Accessory Package (8250) — Traction Unit, Saunders Cervical Traction Unit (7040), QuickWrap DTS Belt System (2825), Knee Bolster Set (42901)
Documents
Use of this product is strictly reserved for healthcare professionals.
