Description

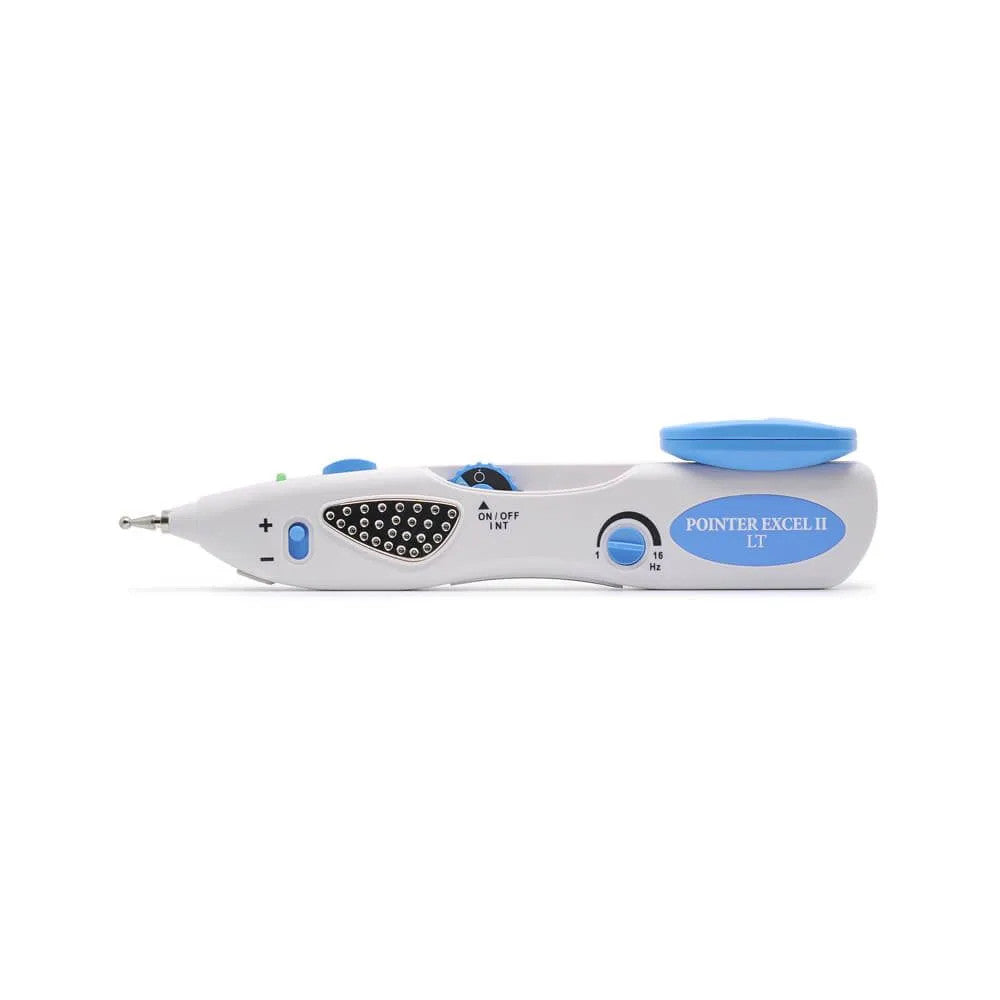

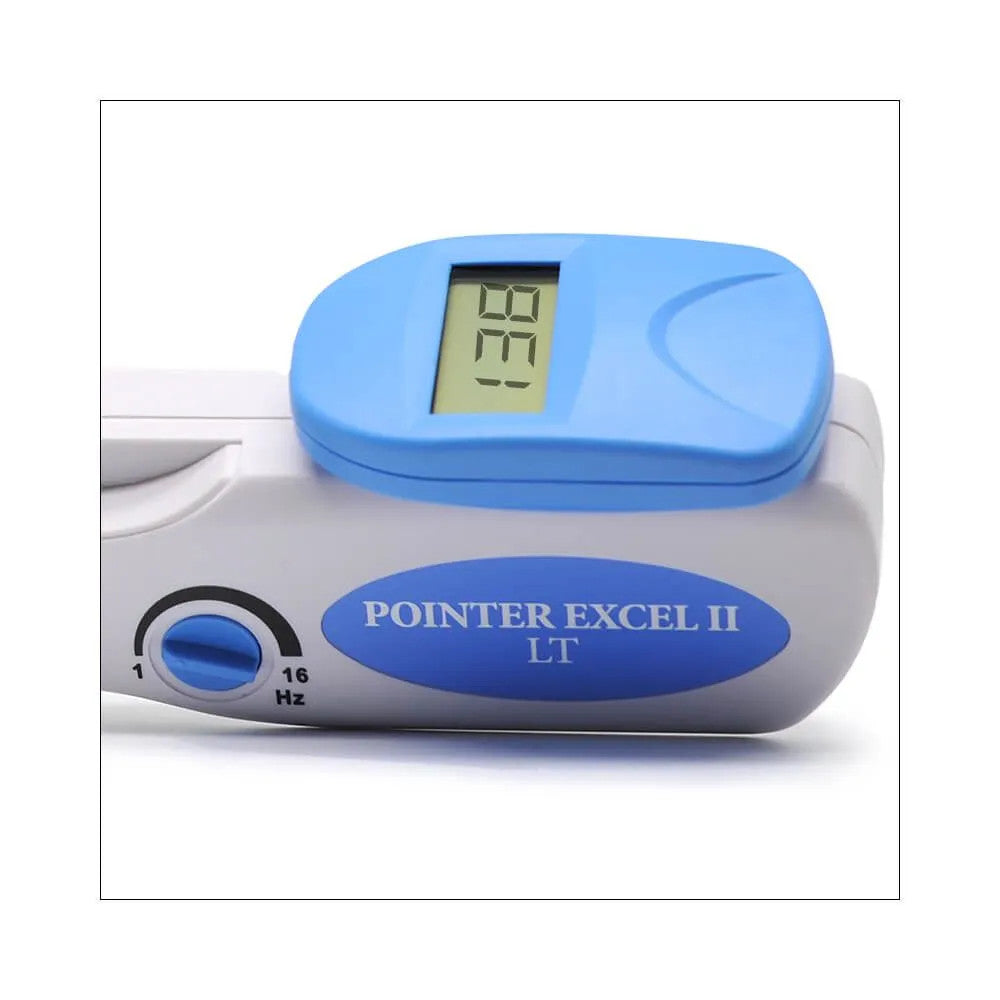

The Pointer Excel II LT is a hand-held electroacupuncture point stimulator and point locator. A built-in LCD digital meter displays frequency, and push-button stimulation delivers treatment on demand. The output dial selects either normal milliamp output or microamp current (the blue zone on the dial). A polarity reversal switch provides tonification (+) or sedation (−).
Specifications
- Output: 1 channel

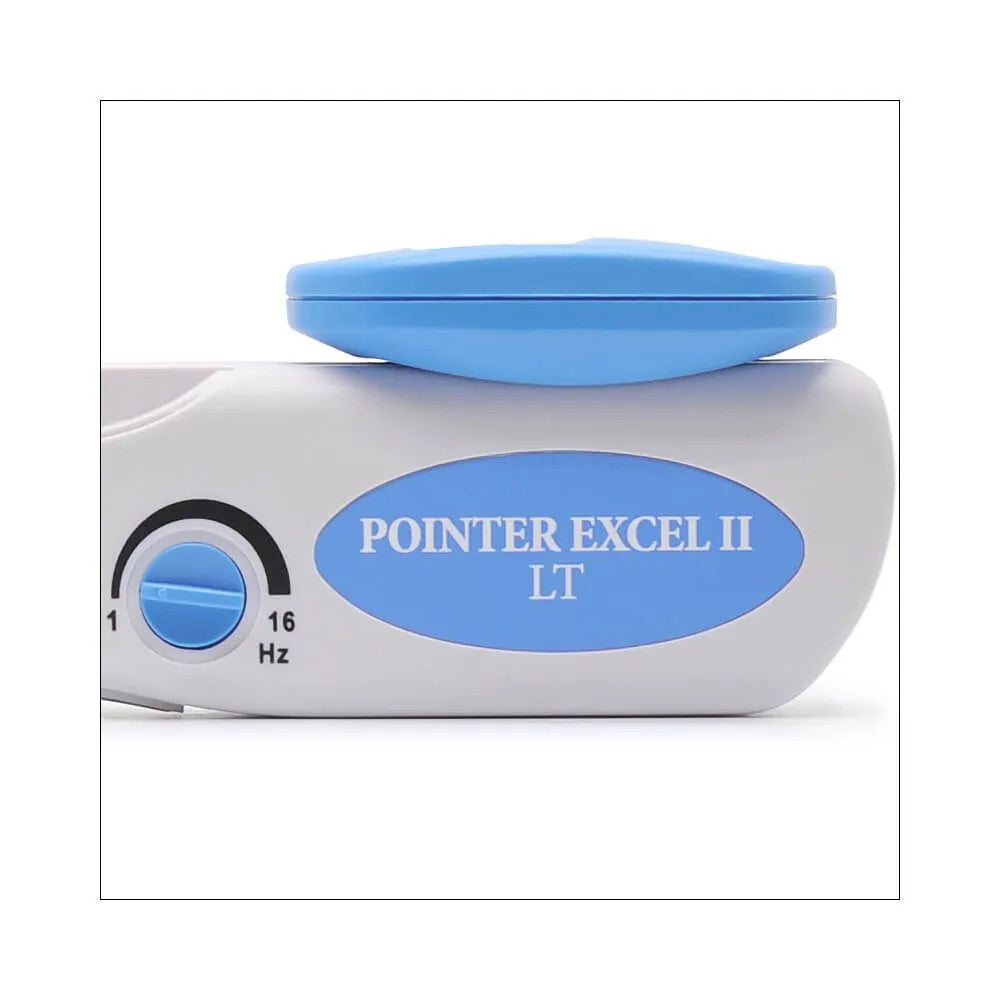

- Frequency: 1–16 Hz, adjustable, shown on LCD
- LCD meter: 0.35" × 1.0"
- Normal dial: 22.5 V, 0–45 mA
- Microamp (blue zone): 11 V, 0–2 mA

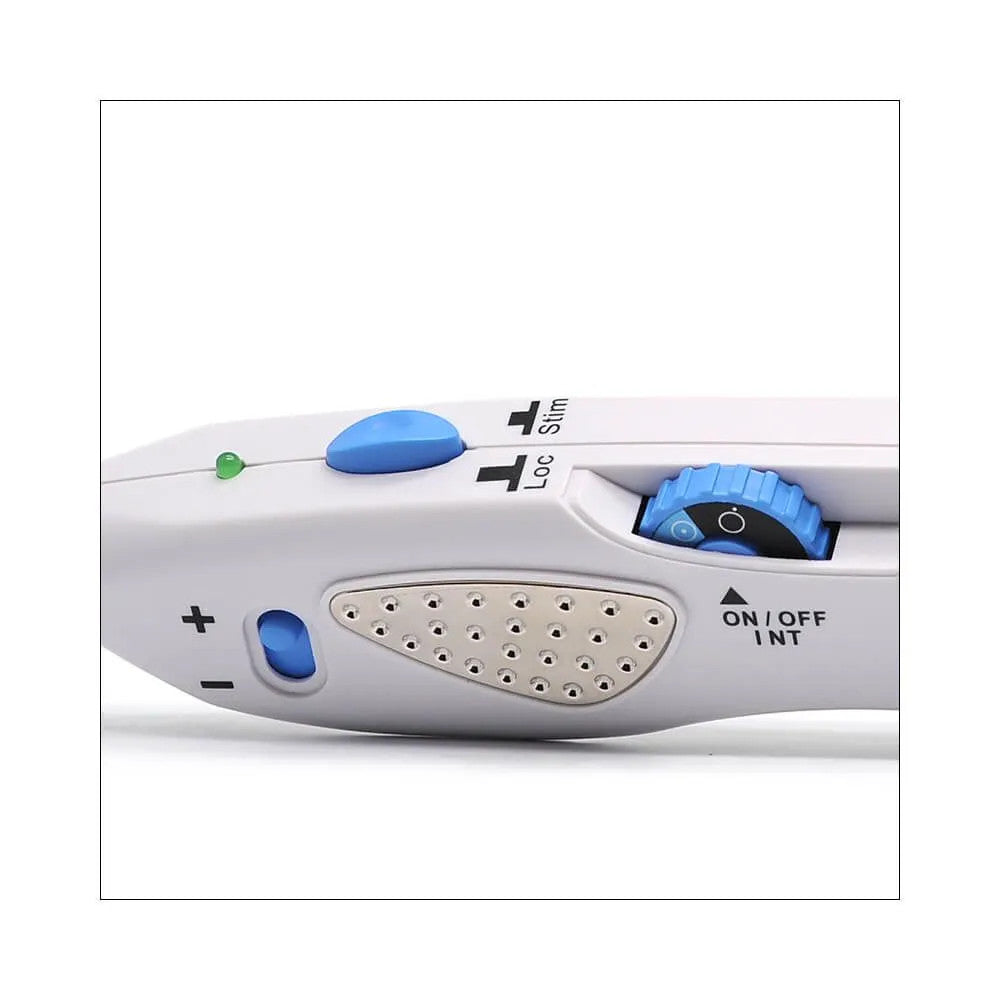

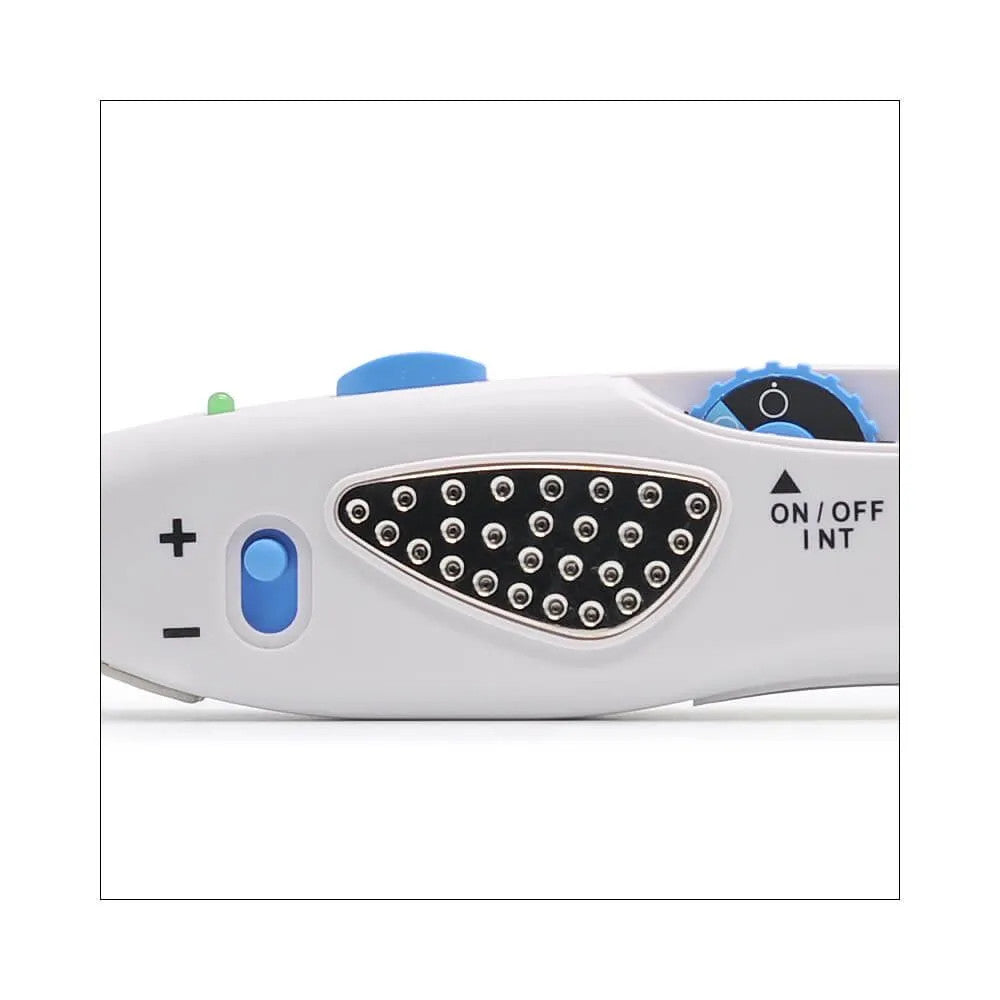

- Polarity reversal: +/− via switch
- Pulse width: 260 µs fixed
- Waveform: biphasic square wave with negative spike
- Mode: continuous
- Point location: skin impedance monitoring via meter, sound and light
- Power: one 9 V battery (not included)
- Dimensions / weight: 8.9" × 2" × 1.5", 95 g, white and blue

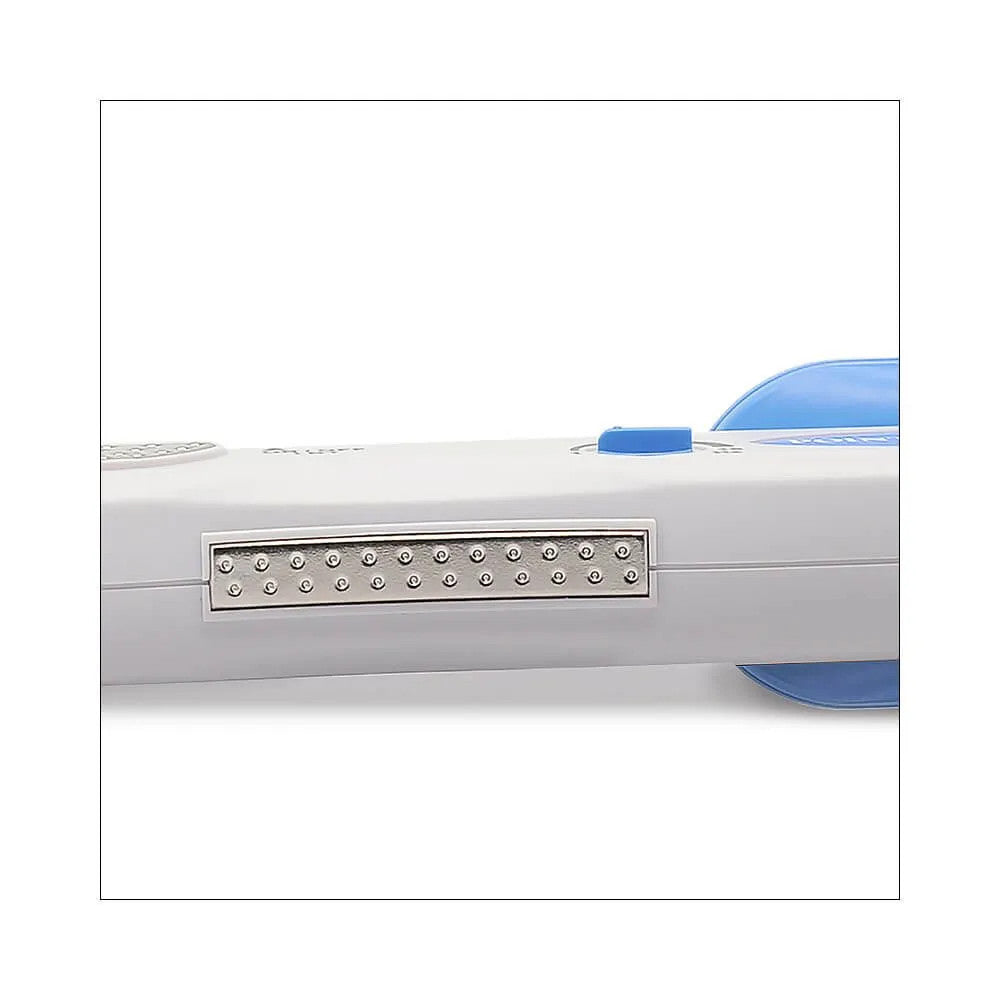

- Two grounding plates for left- or right-hand use

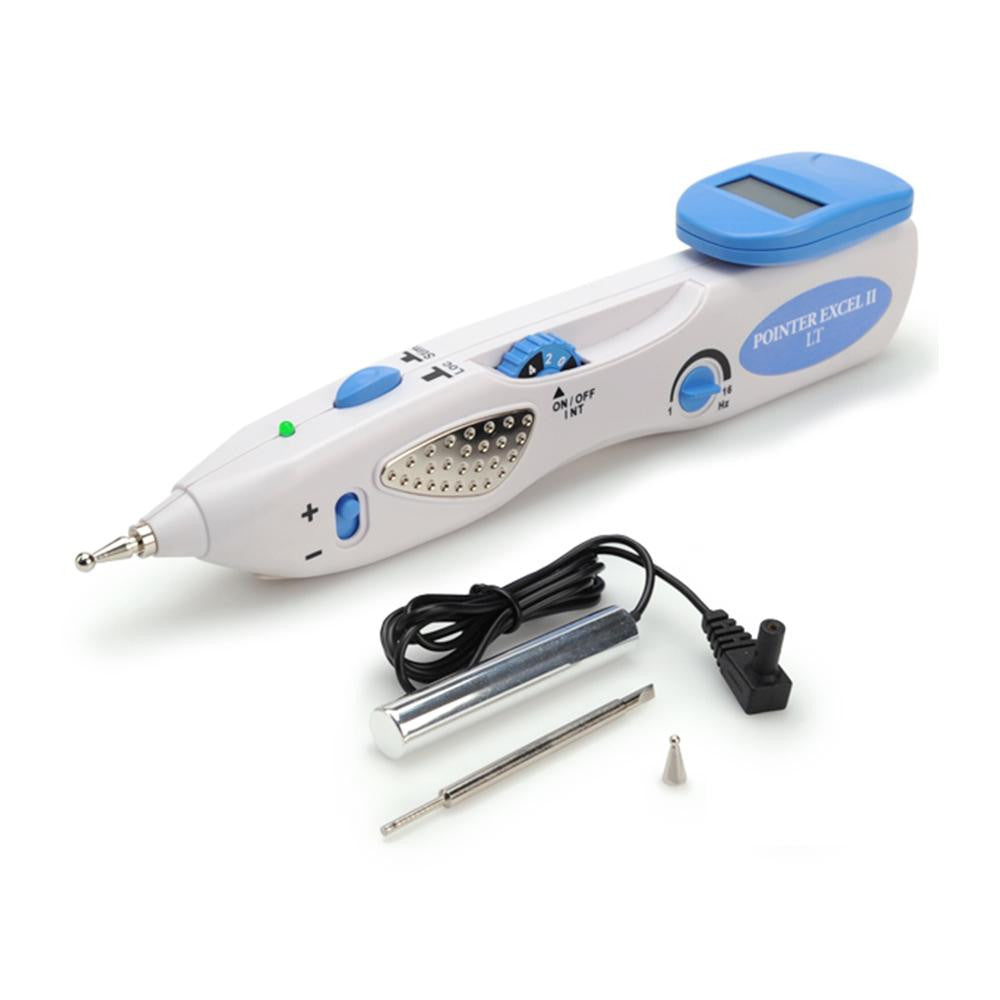

In the box

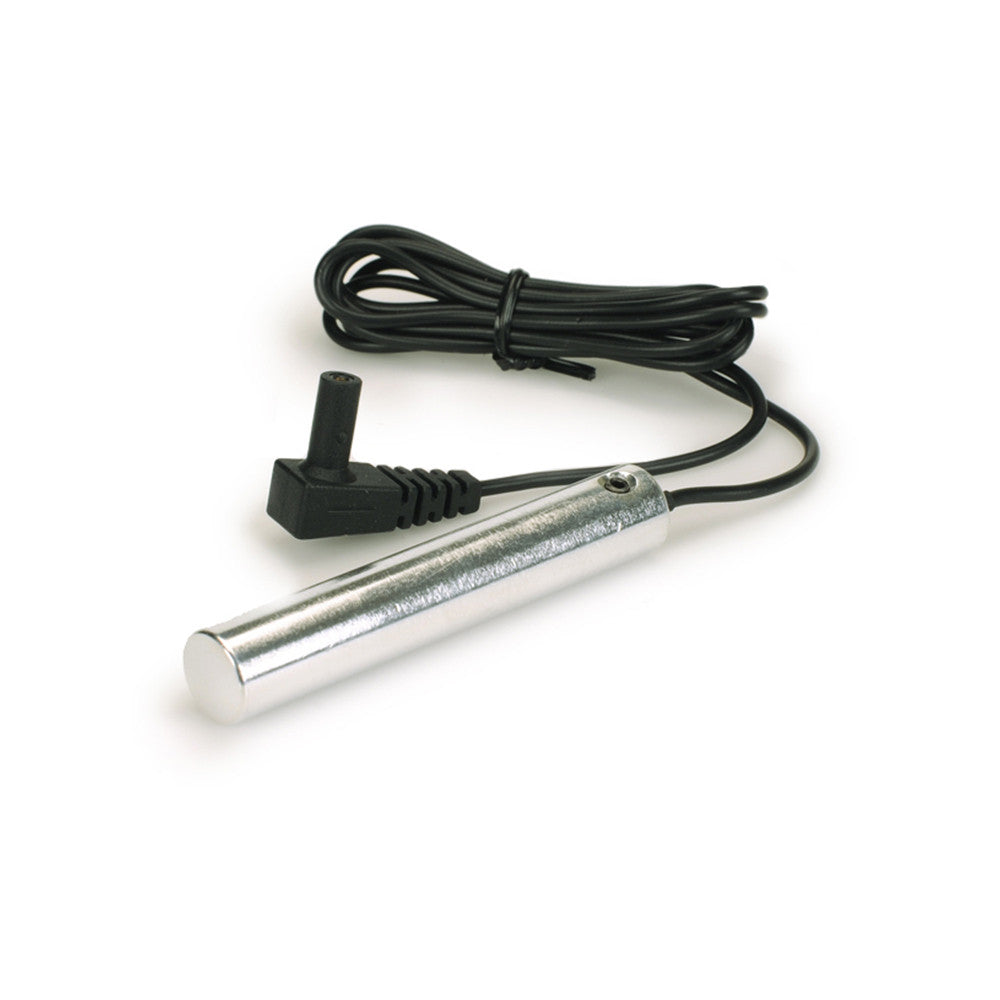

- Hand probe with grounding pole and attached wire

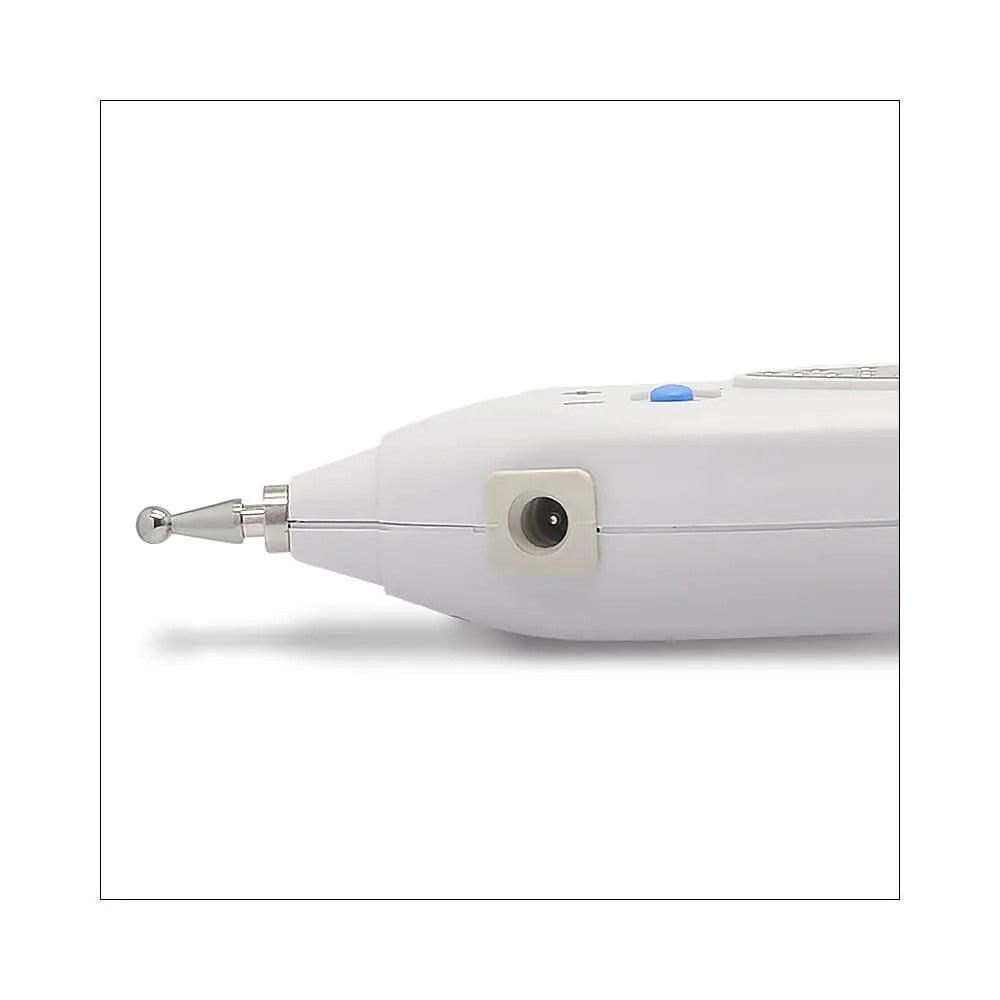

- 2 probe tips: ear 2 mm (0.08") and body 4 mm (0.16")
- Carrying case and instructions
Warranty: 1 year, unit only.
Regulatory note: Federal law restricts this device to sale by or on the order of a physician or other licensed practitioner.
