Description

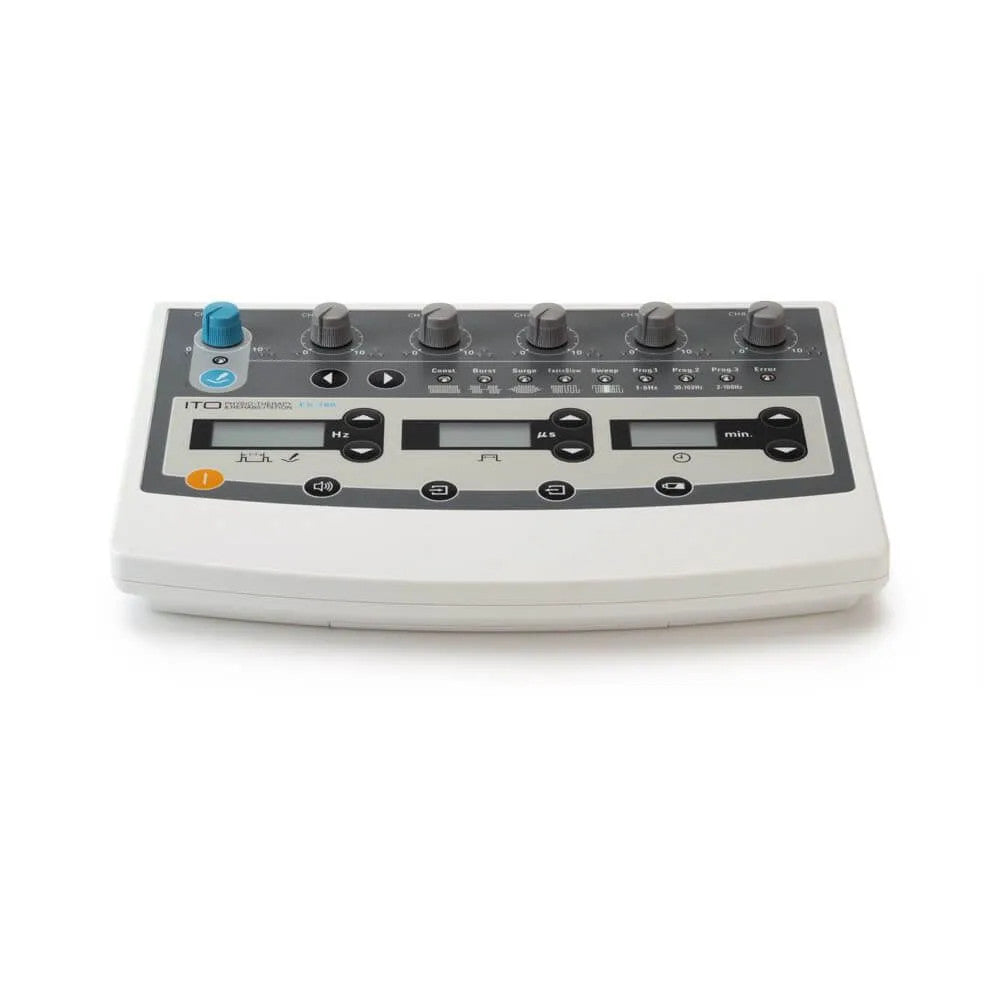

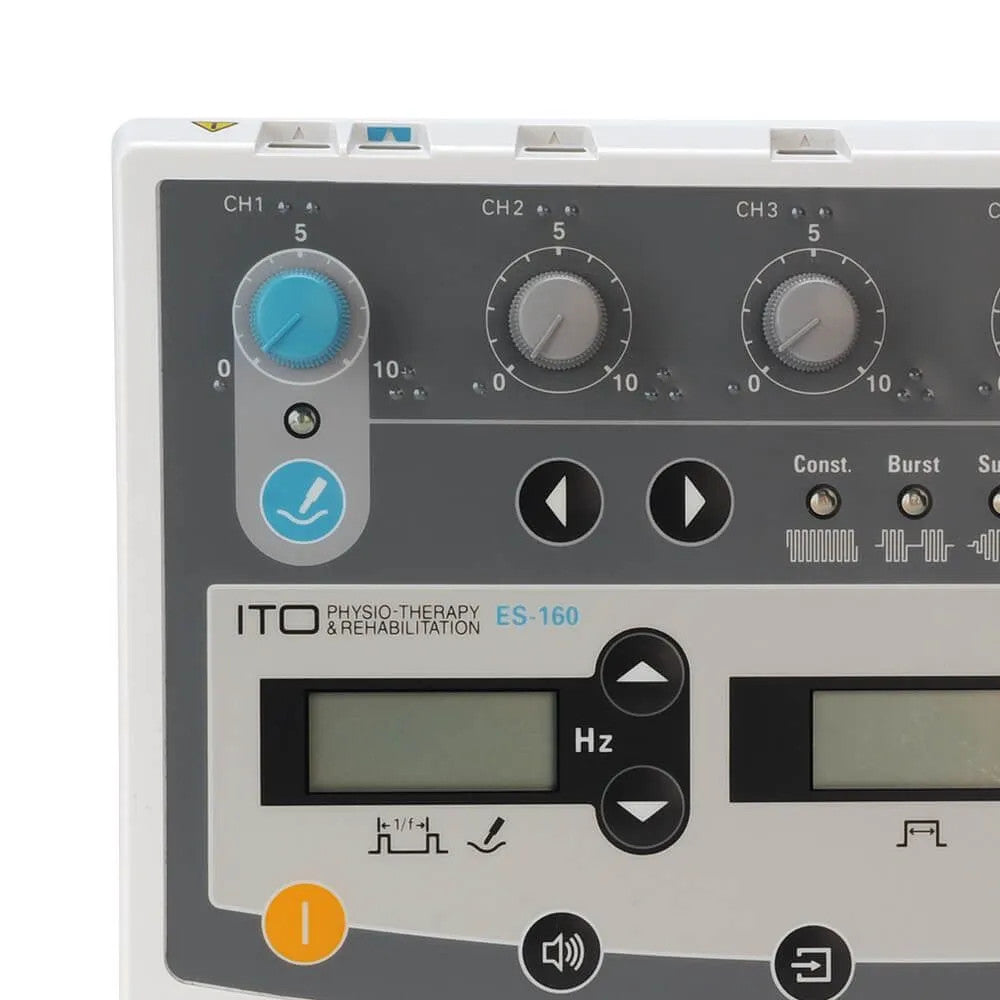

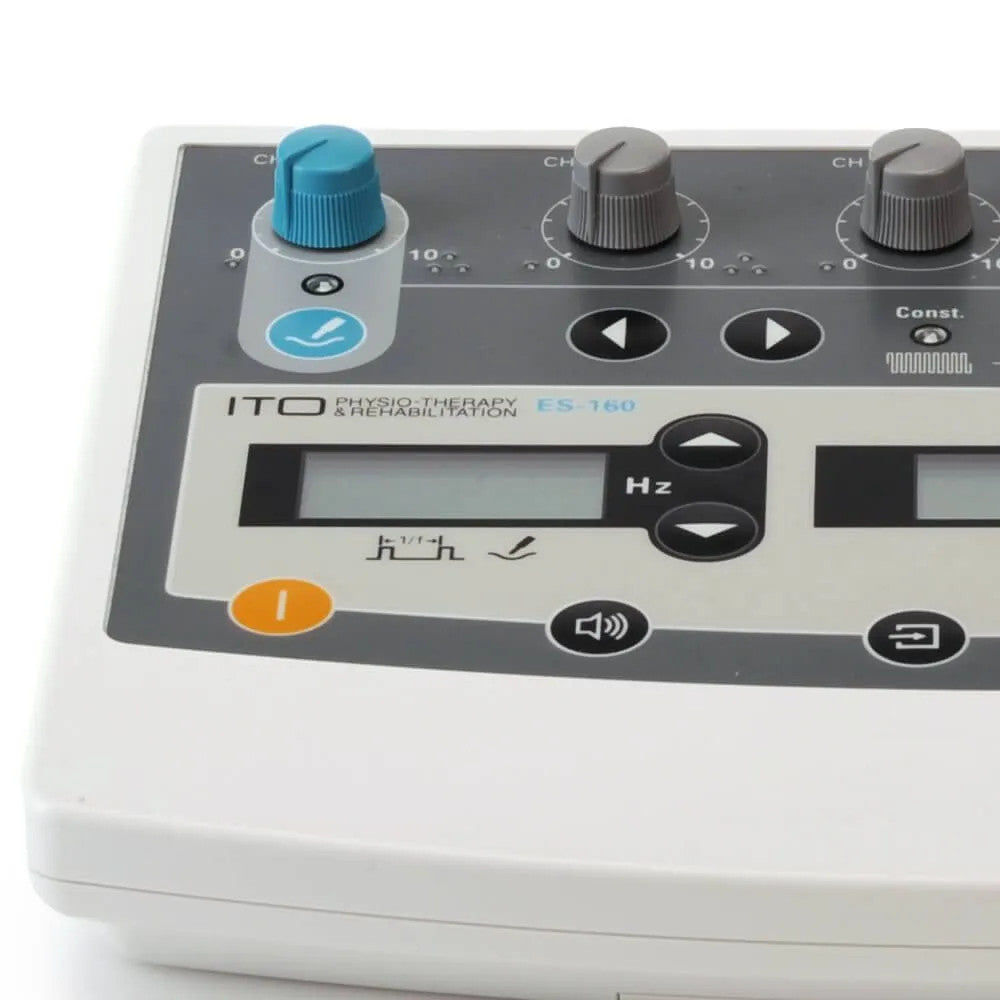

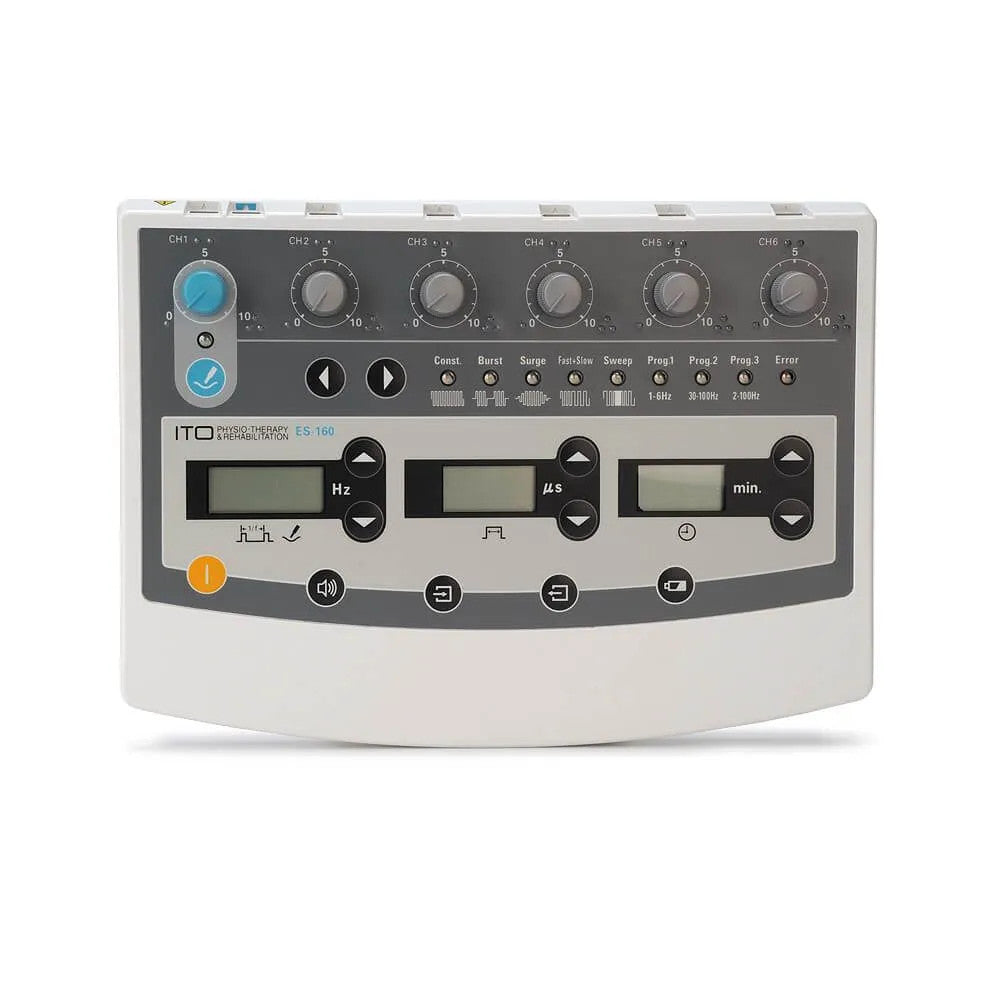

The ITO ES-160 is the most advanced 6 channel electroacupuncture stimulator from Japan — compact, lightweight, sturdy and desk-sized. It provides 8 stimulation modes, saves the 5 previous treatment parameters and holds 16 programmable memory settings. Three LCD displays show point search sensitivity, frequency, pulse width, program mode, memory data, treatment time and battery life.

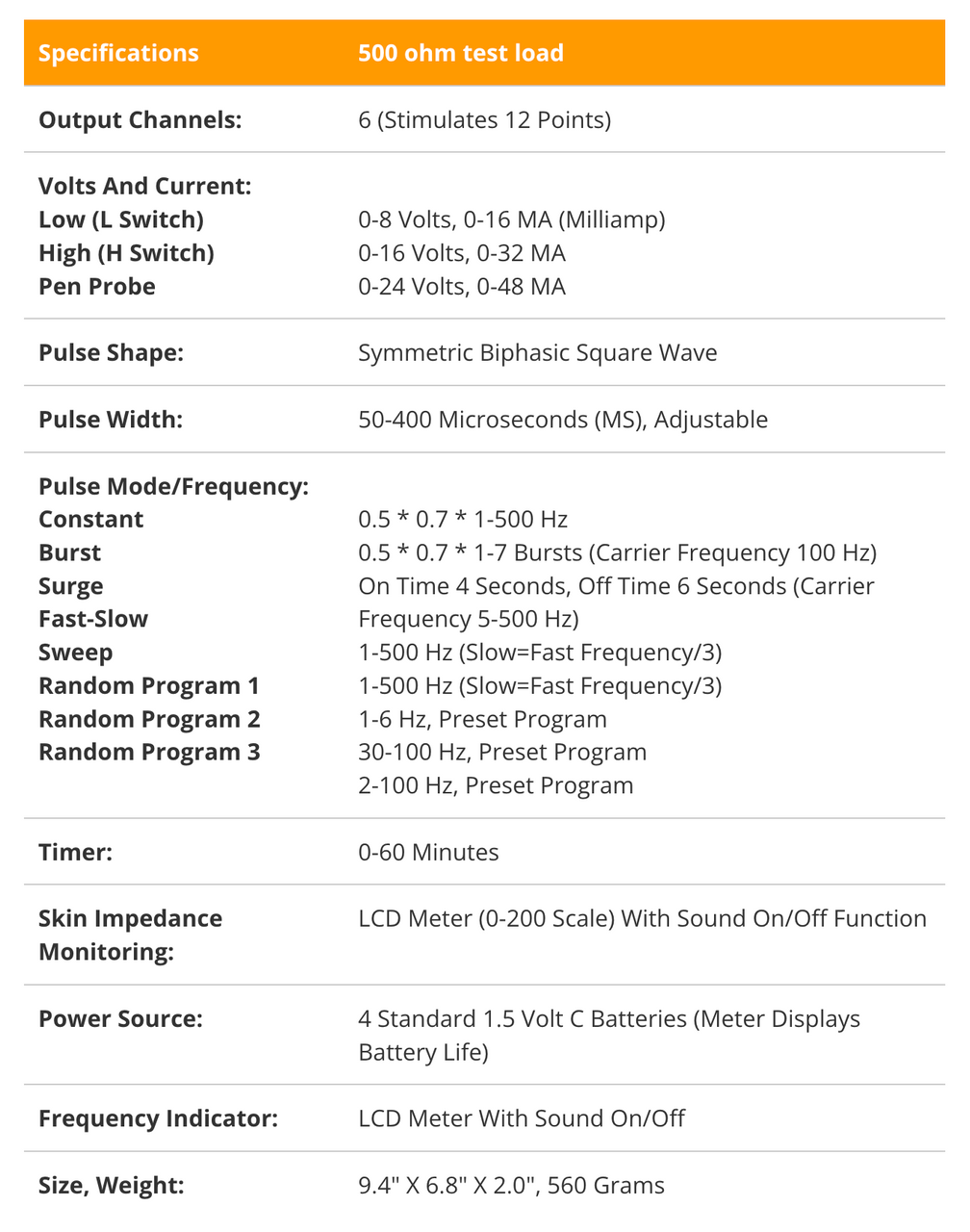

Specifications

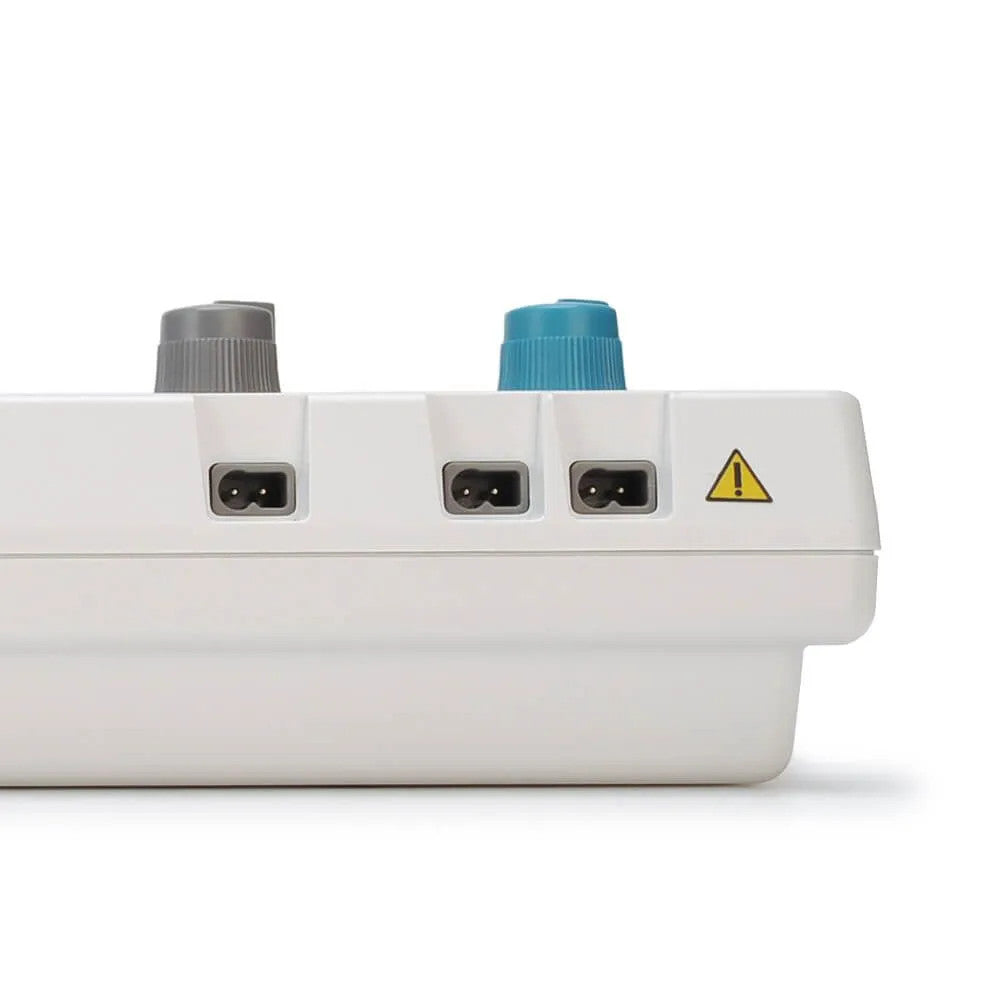

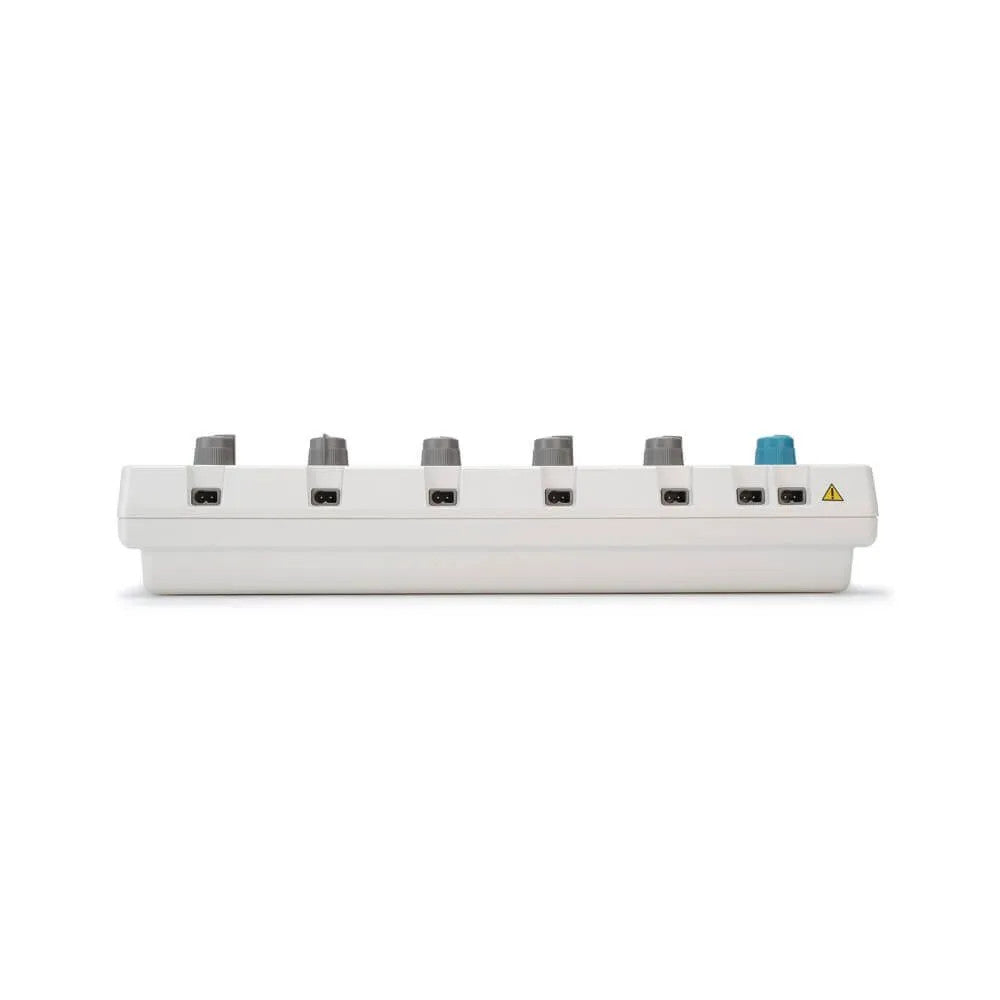

- Channels: 6 outputs, stimulating up to 12 points
- Low output: 0–8 V, 0–16 mA
- High output: 0–16 V, 0–32 mA
- Waveform: symmetric biphasic square wave
- Pulse width: 50–400 µs, adjustable
- Modes: Constant, Burst, Surge, Fast-Slow, Sweep, Random programs 1–3
- Frequency: 0.5–500 Hz (varies by mode)
- Timer: 0–60 minutes
- Point location: skin impedance LCD meter, 0–200 scale

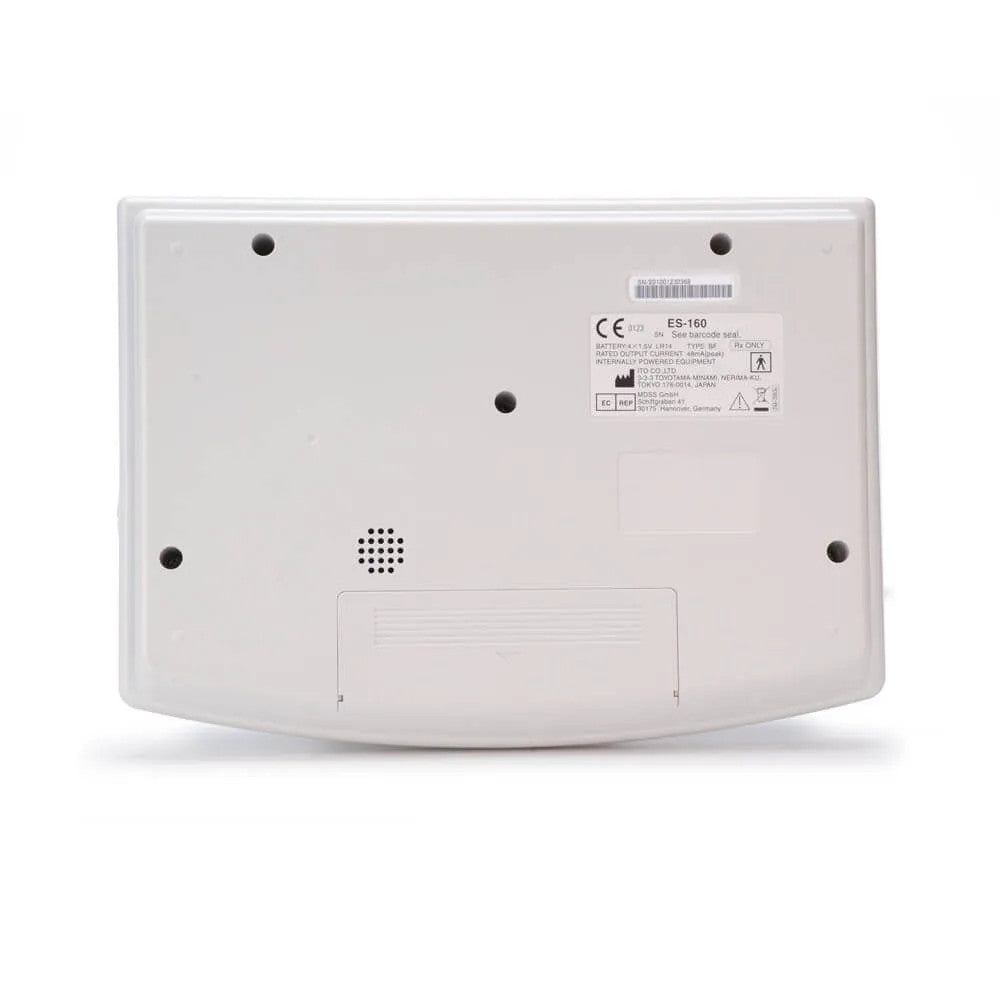

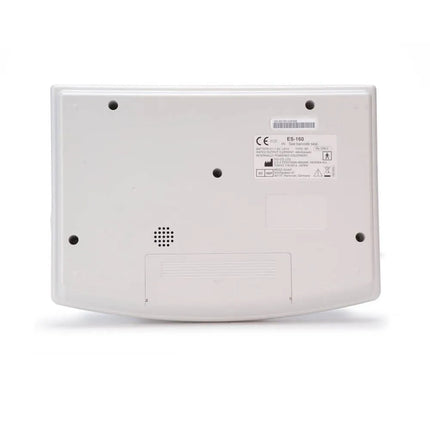

- Power: 4 standard 1.5 V C batteries (not included)
- Dimensions / weight: 9.4" × 6.8" × 2.0", 560 g
Safety features
- Self-test and zero start
- Automatic power-off after 5 minutes unused
- Sound on/off, emergency stop button, end-of-treatment tone

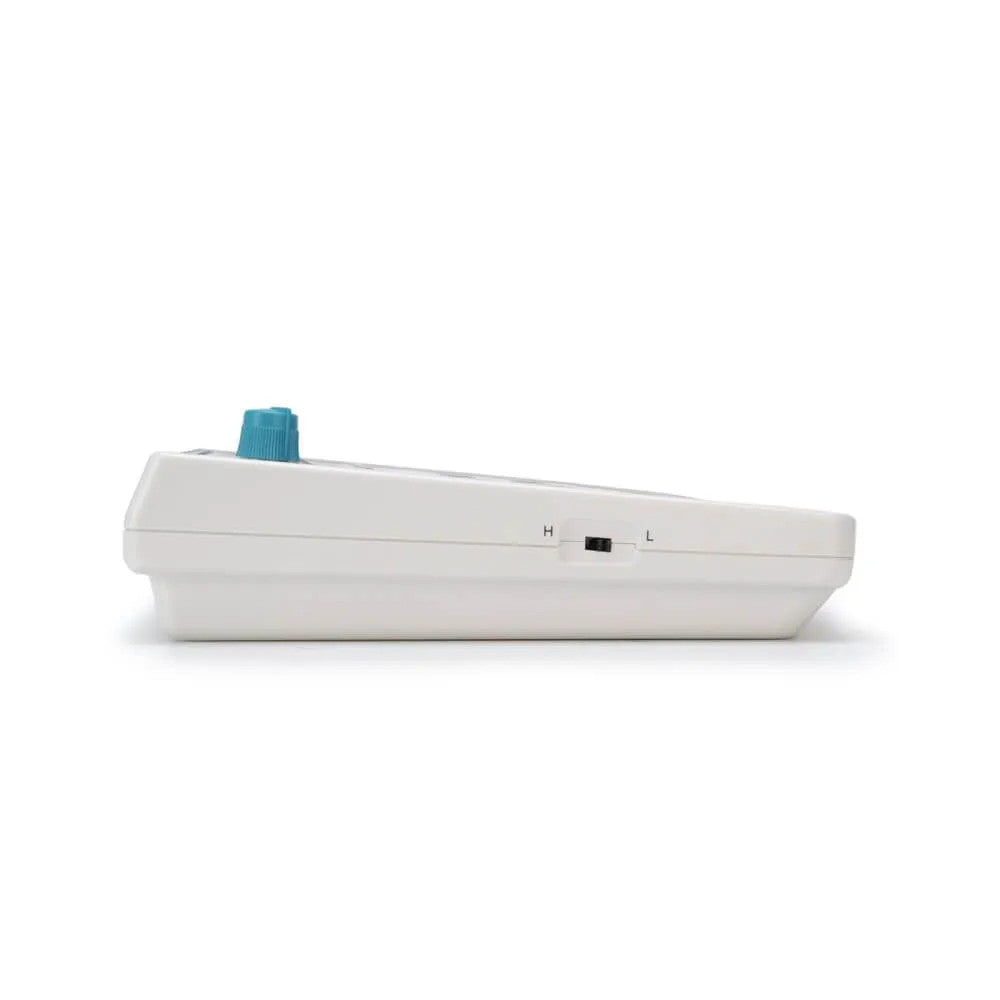

- High/Low switch on the side of the unit

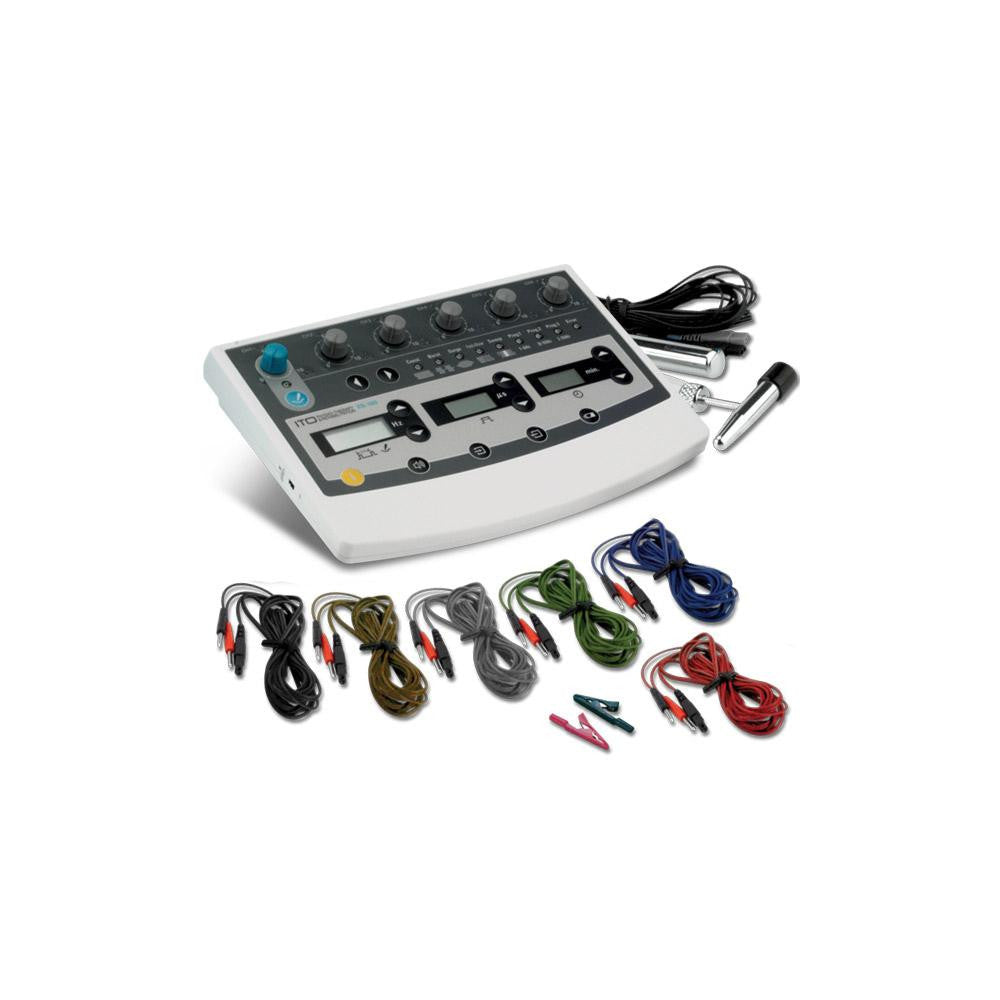

In the box
- 6 electrode cords in assorted colors
- 12 alligator clip-ons (6 red / 6 black)
- Operation manual
Warranty: 1 year, excluding wires and clips. Replacement wires and alligator clips sold separately. Manufactured by ITO Co., Ltd., Japan.
Regulatory note: Federal law restricts this device to sale by or on the order of a physician or other licensed practitioner.
