Description

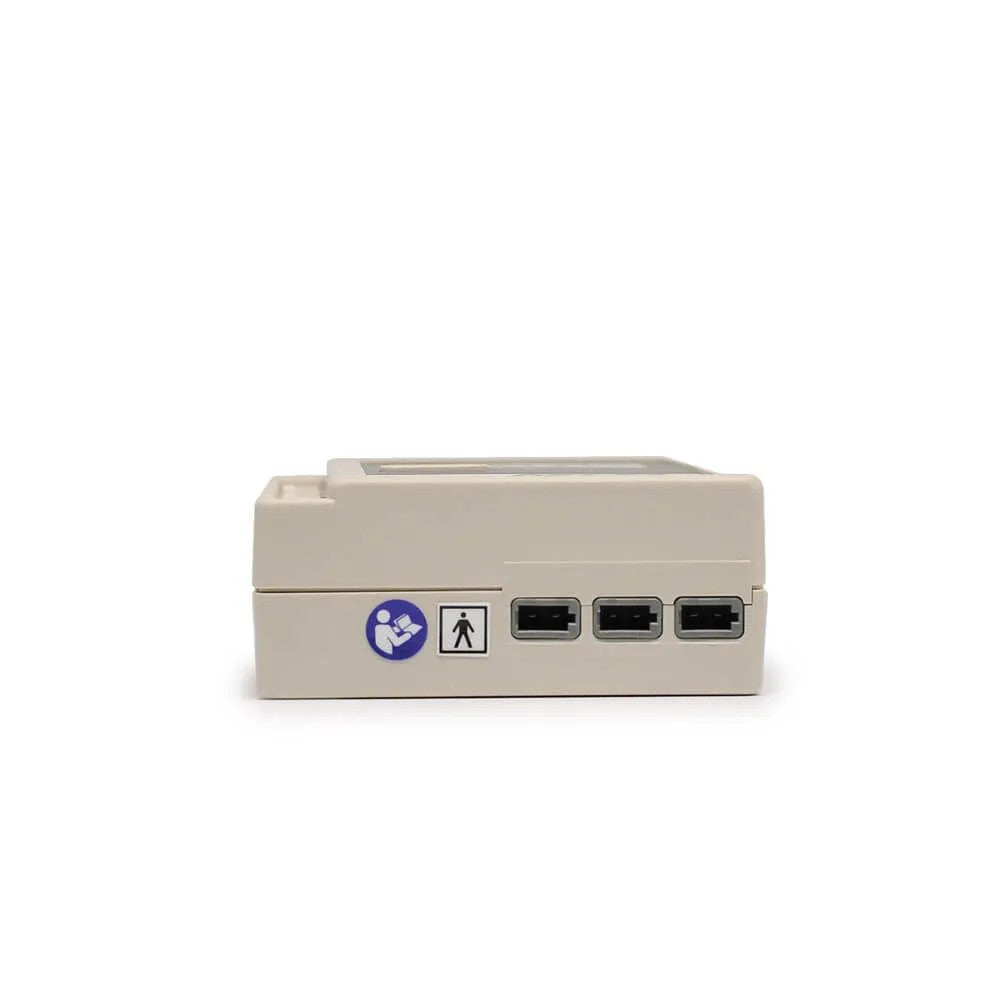

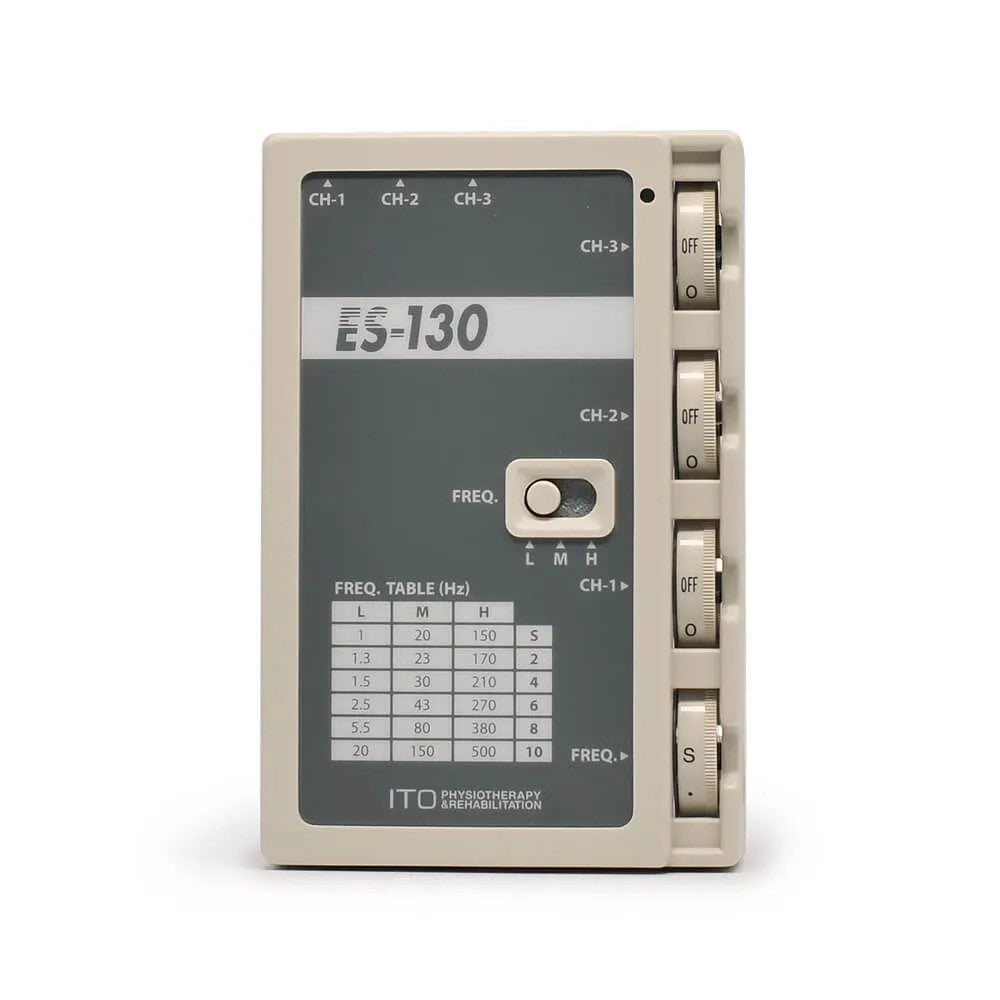

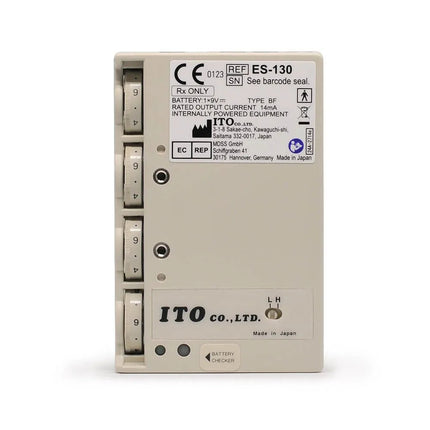

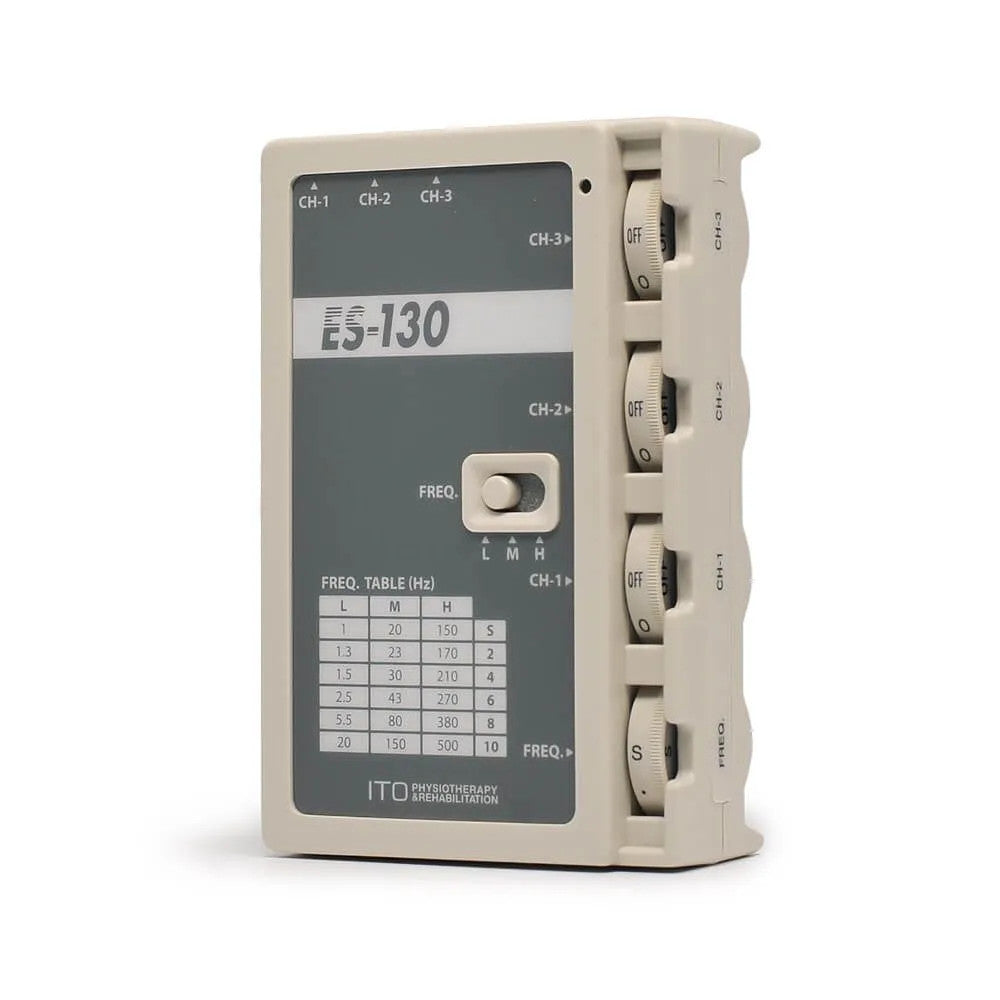

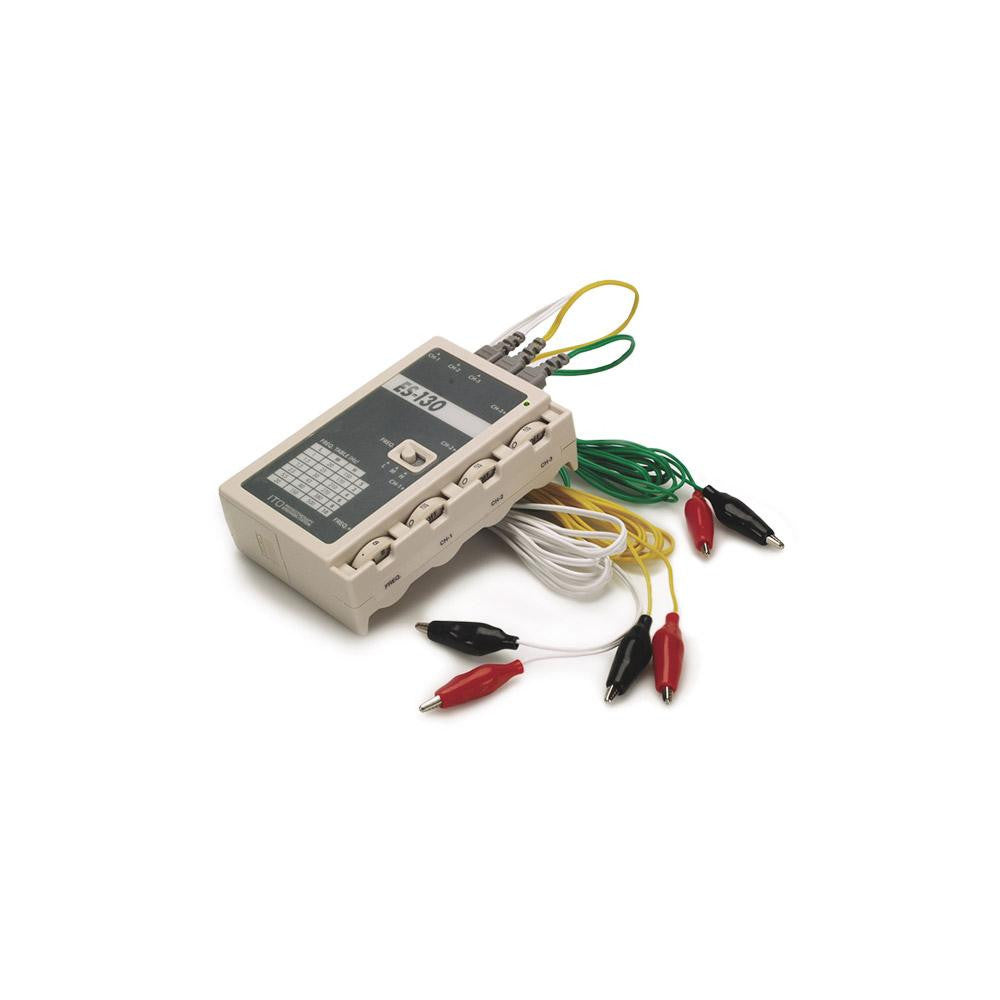

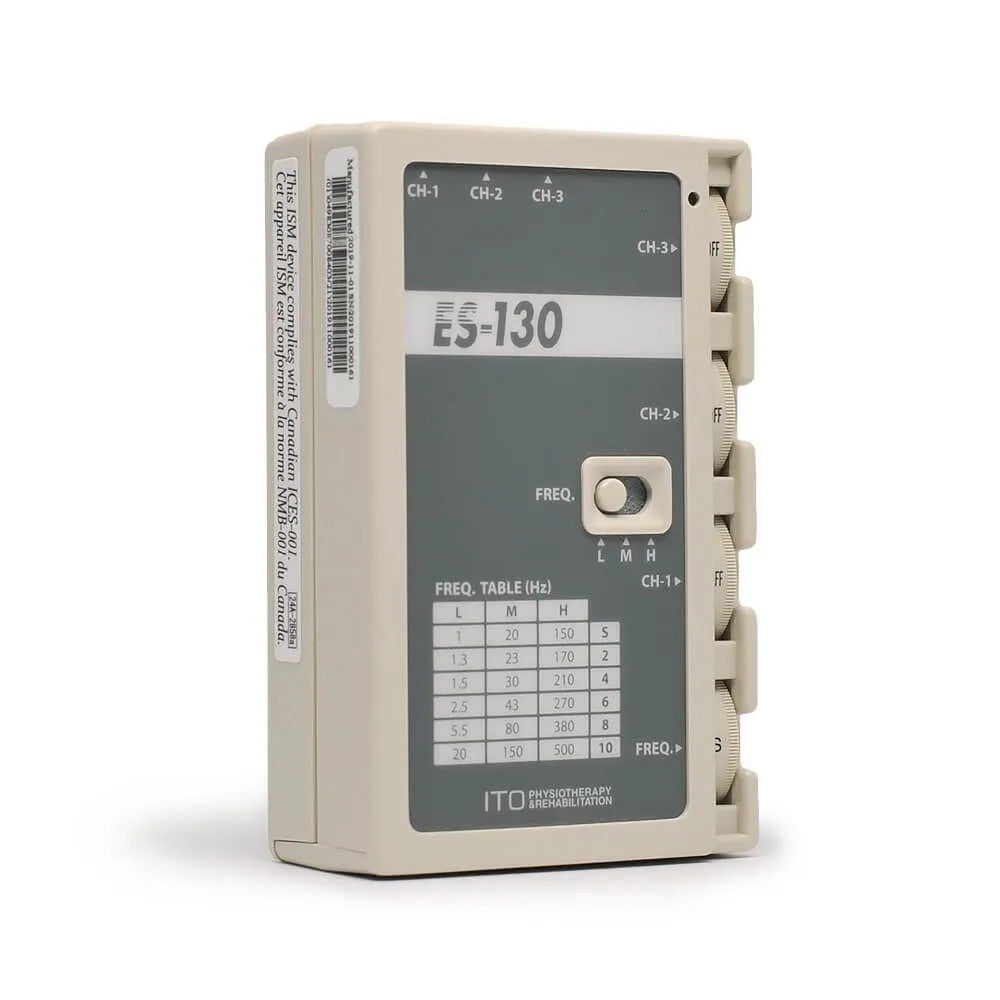

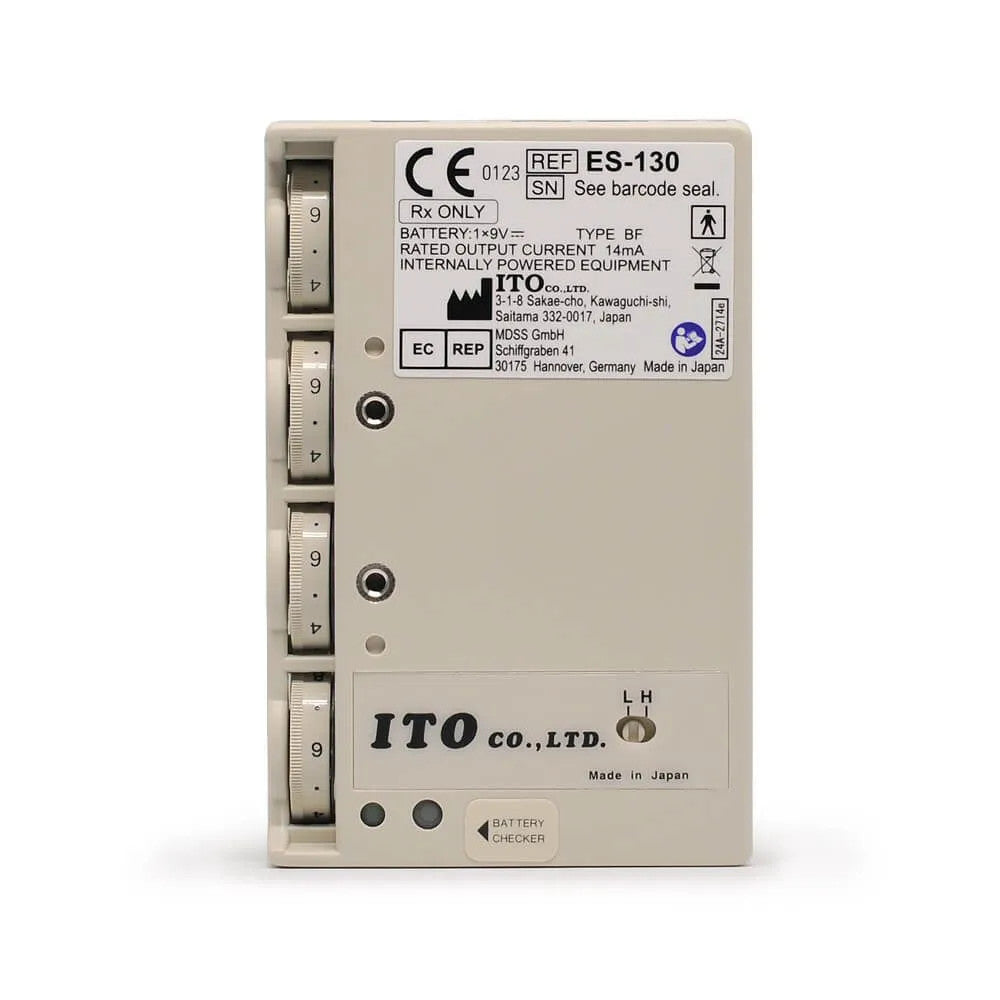

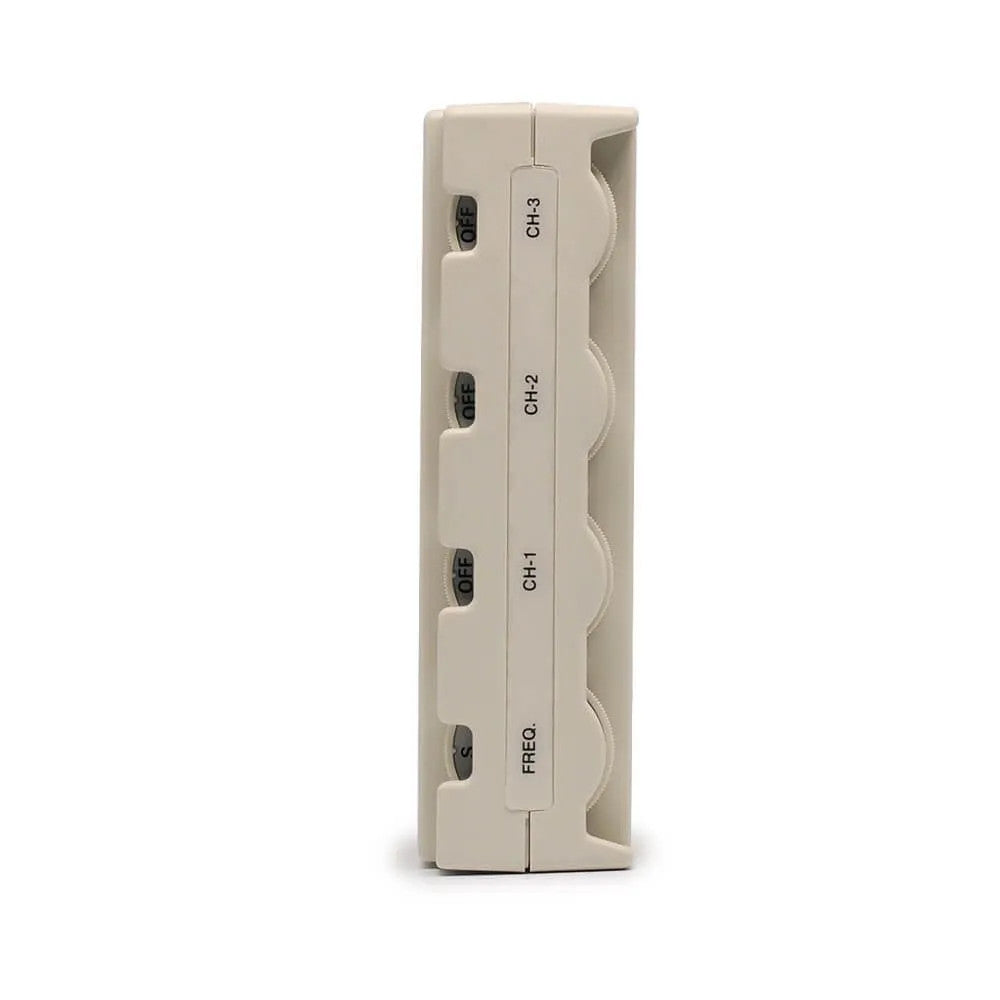

The ITO ES-130 is a compact, sturdy Japanese electroacupuncture and electro-therapy device light enough to fit in the palm of your hand. A High/Low switch on the back toggles between needle work (Low) and MEA electro-therapy (High). Three independently controlled output channels offer adjustable frequency with a flashing indicator, and the biphasic waveform is designed to minimise electrolysis damage to the needle. This unit is not equipped with a point locator.
Specifications
- Channels: 3 independent intensity channels
- Frequency: L 1–20 Hz / M 20–150 Hz / H 150–500 Hz
- Low output: 0–10 V, 0–20 mA
- High output: 0–20 V, 0–40 mA
- Maximum voltage: 30 V
- Pulse width: 100 µs
- Waveform: asymmetric biphasic square wave
- Mode: continuous
- Frequency indicator: flashing red
- Power: one 9 V battery (not included)
- Dimensions / weight: 4.5" × 3.2" × 1.2", 0.3 lb, gray
In the box

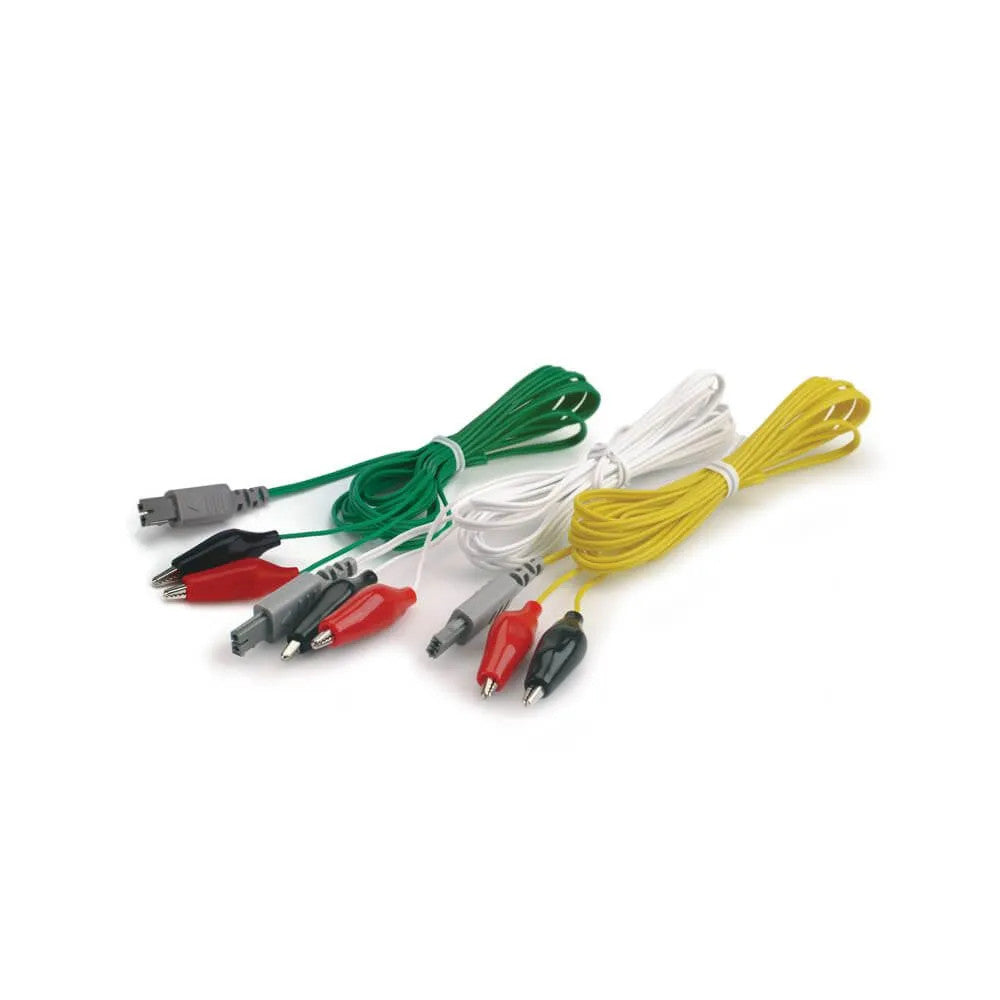

- 3 sets of CE wire leads with rectangular CE jack
- Carrying case and instructions
Warranty: 1 year, unit only. Manufactured by ITO Co., Ltd., Japan.
Regulatory note: Federal law restricts this device to sale by or on the order of a physician or other licensed practitioner.
