Description

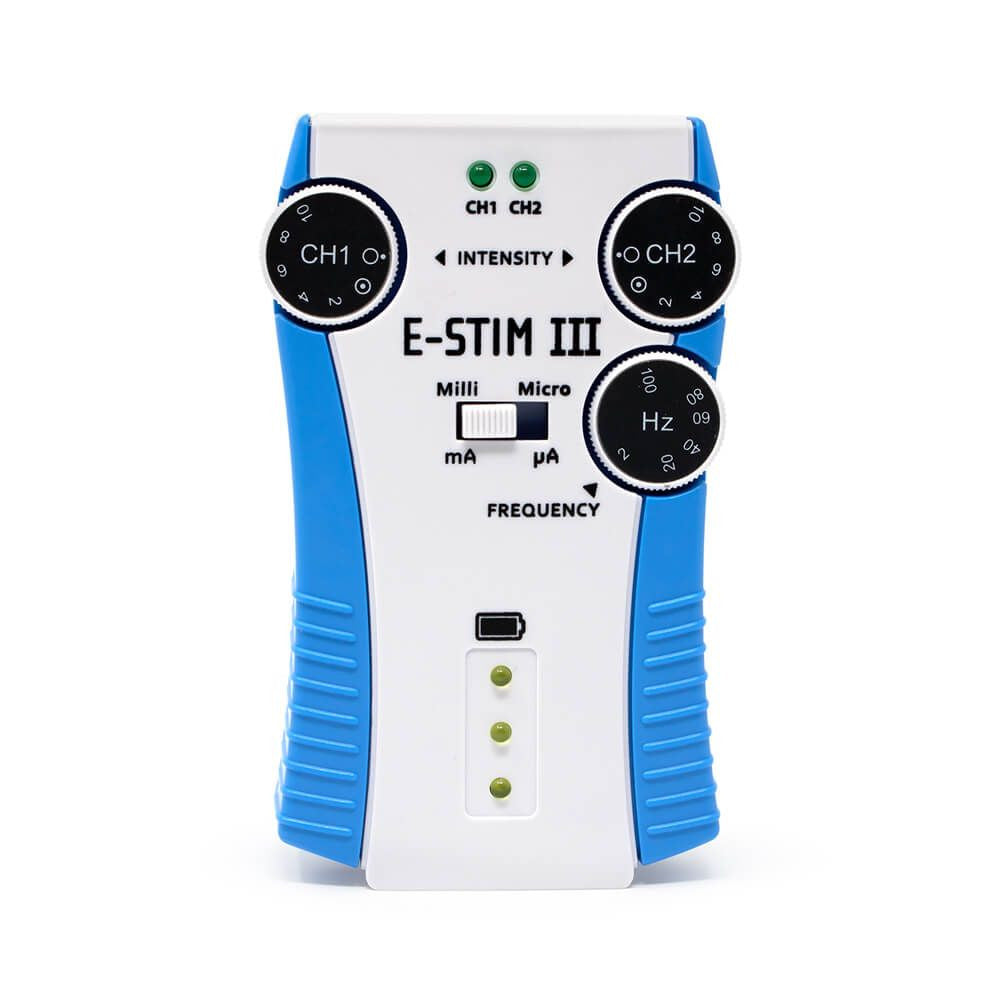

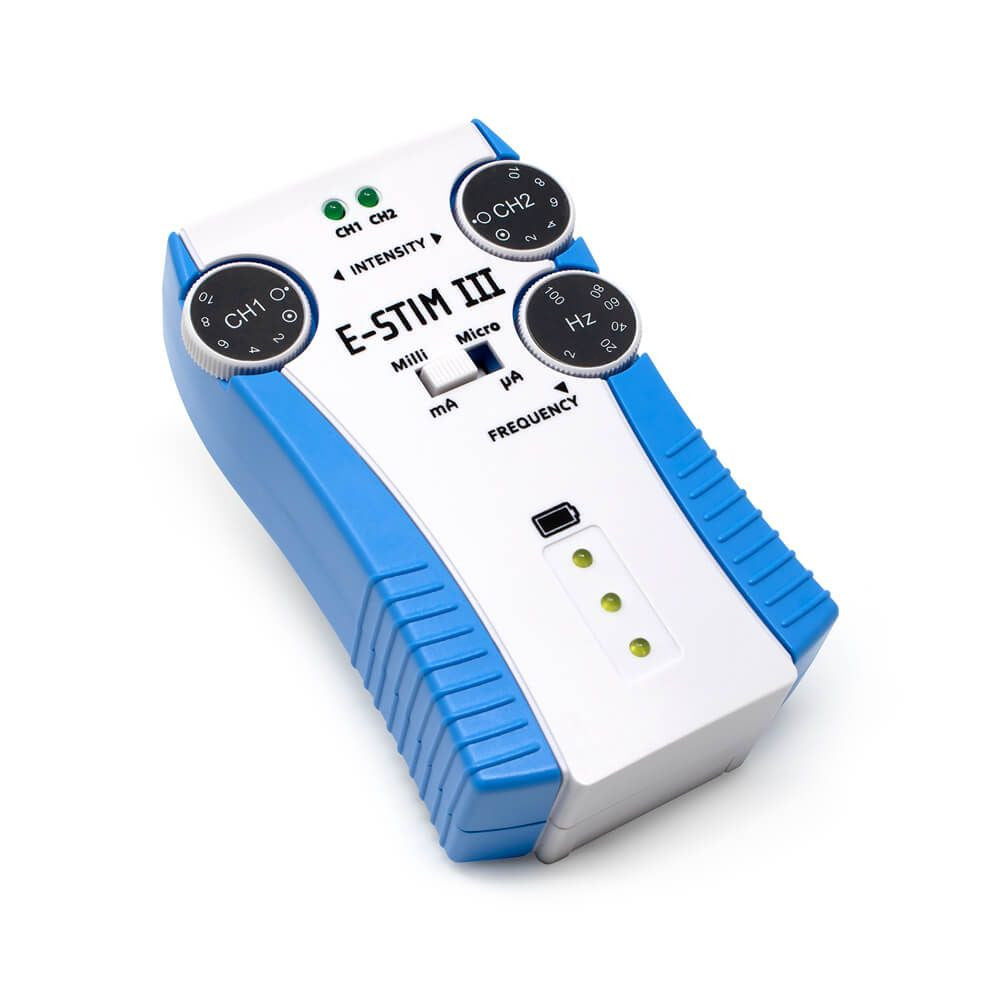

The E-Stim III adds improved precision for more accurate treatment settings, a no-slip rubber casing, and a battery meter to the portable electroacupuncture platform. Two independent channels run continuous-frequency stimulation in both milliamp (normal current) and microamp (micro-current) modes, each with its own green LED.
Specifications
- Channels: 2 independent intensity channels
- Frequency: 1–100 Hz with green LED indicator
- Microcurrent output: 0–1 V, 0–2,000 µA (2 mA)
- TENS output: 0–20 V, 0–40 mA
- Pulse width: 260 µs
- Waveform: biphasic square wave with negative spike
- Mode: continuous
- Power: one 9 V battery (not included)
- Power indication: 3 orange LEDs / battery meter
- Dimensions / weight: 4.3" × 2.65" × 1.3", 131 g, blue and white

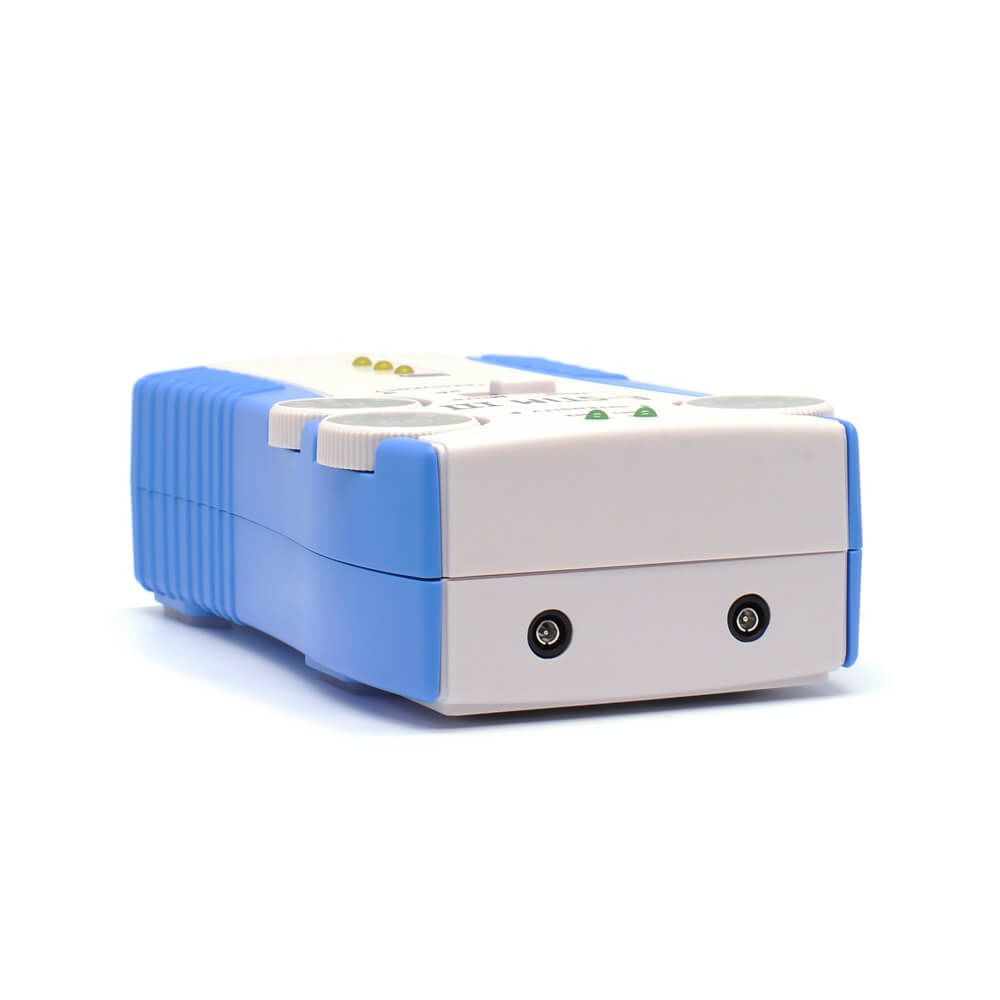

- Lead wire connector: 4.0 mm alligator clip (not interchangeable with E-Stim II 3.5 mm wires)
- Tested at 500 ohm load

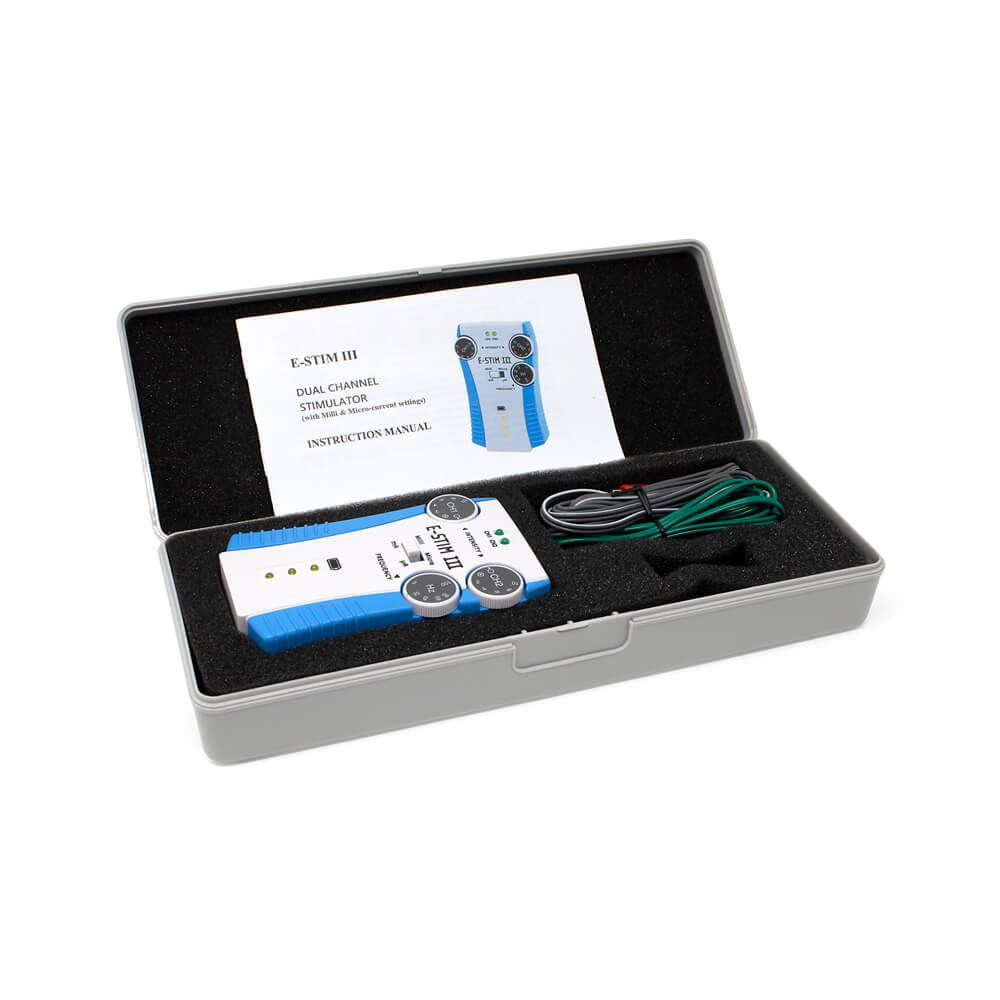

In the box
- 2 alligator clip lead wires (4.0 mm)
- Instruction manual
Warranty: 1 year, unit only.
Regulatory note: Federal law restricts this device to sale by or on the order of a physician or other licensed practitioner.
