Description

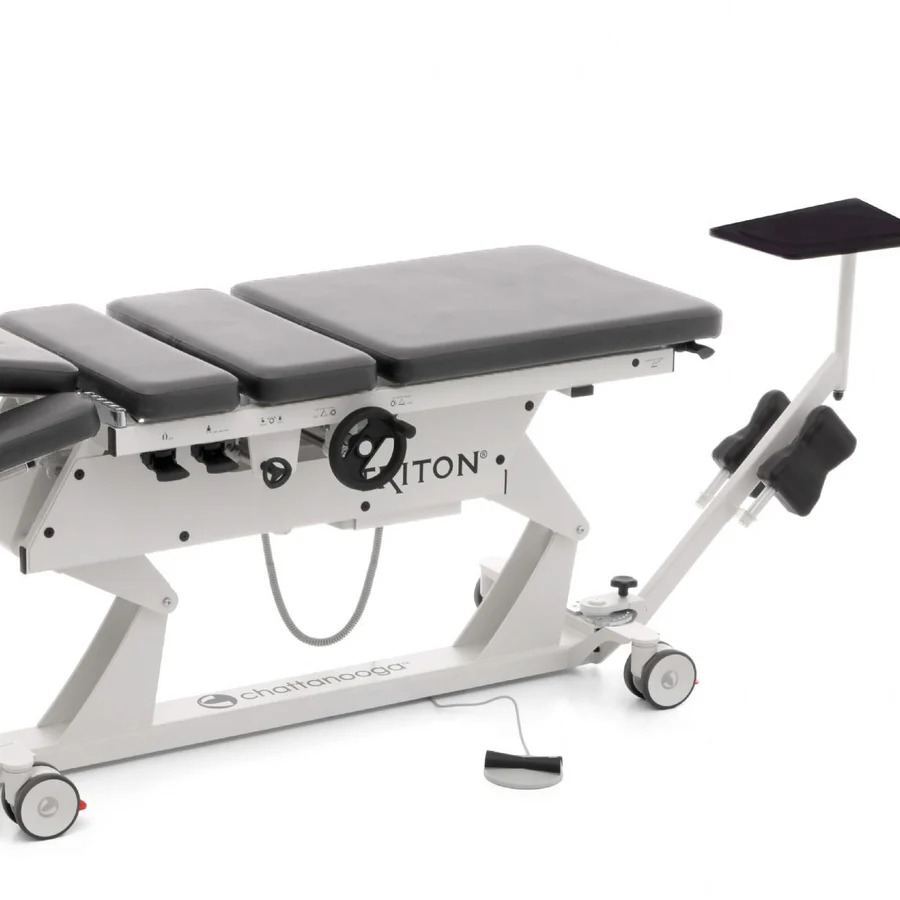

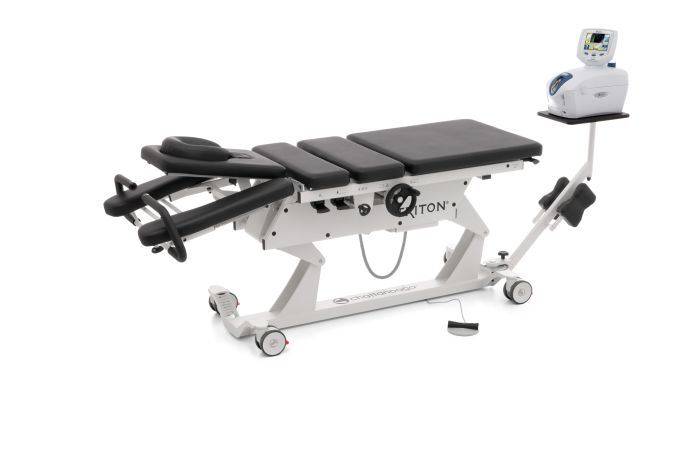

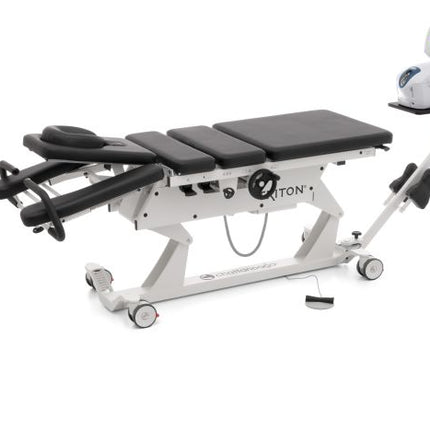

Comprised of 6 sections, the Chattanooga Triton DTS 6M traction table uses a combination of gas springs and electric power to aid manual adjustment — allowing for easy, fluid control of patient positioning. Each section is independently adjustable, providing a wealth of treatment positioning options.

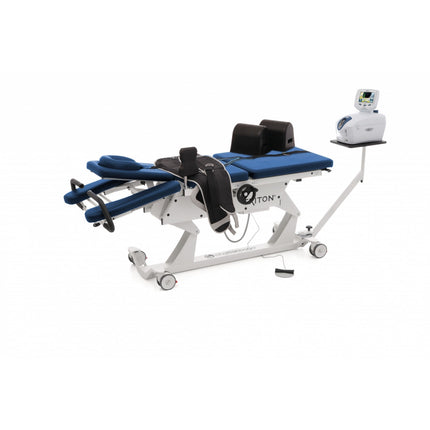

Together with a Triton DTS Traction Unit, the Triton DTS 6M is a solid mid-range choice and the dependable foundation of any therapist's spinal-distraction practice.

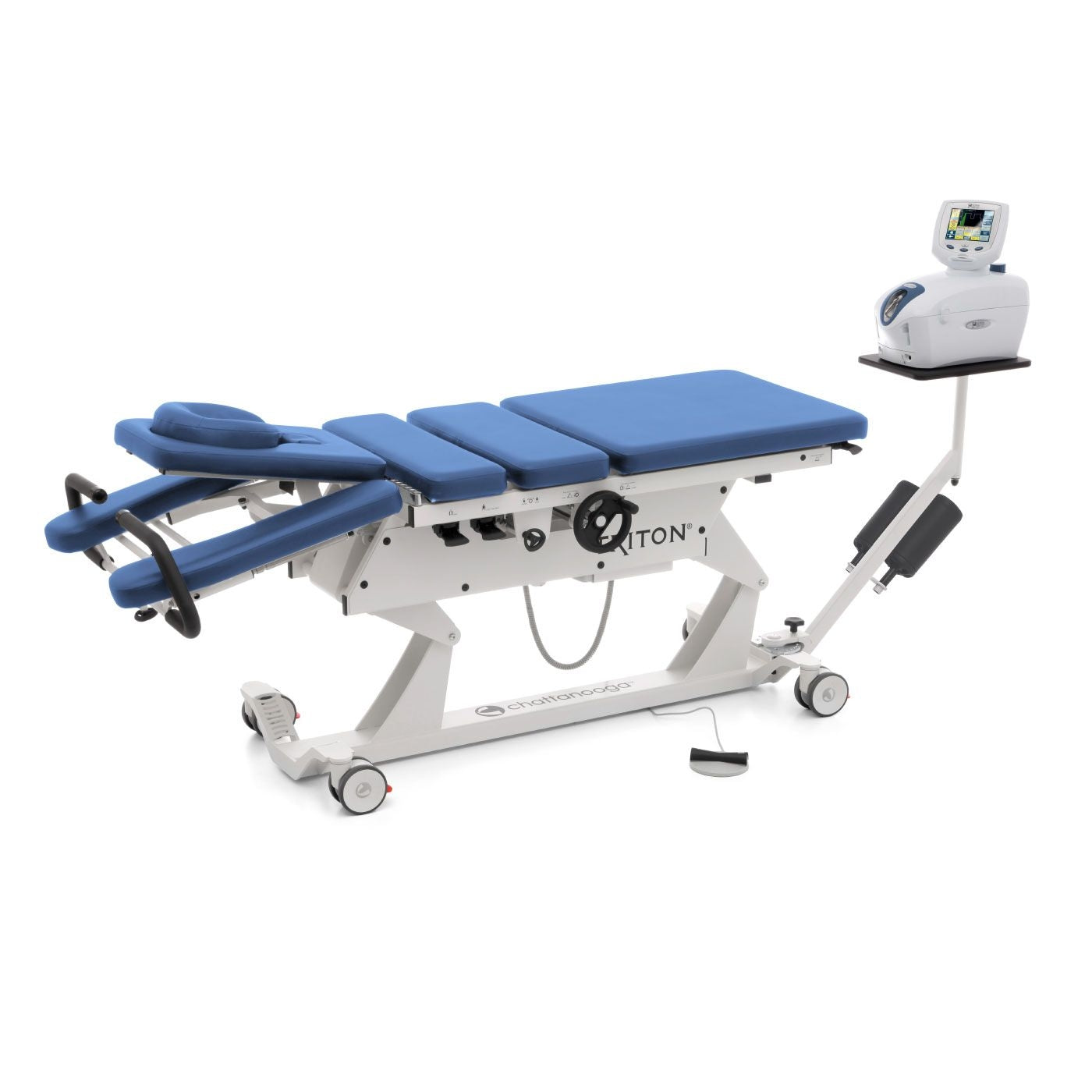

Upholstery: Available in Navy Blue or Black — both stock colors. Blue and Grey are available as a special order — contact us before ordering.
Note: The Triton DTS 6M table is sold separately and does not include the Traction Unit or accessories. For a complete Triton DTS Traction package, see the Triton DTS Advanced (8250) or Basic (8245) Accessory Package.
Features & Benefits
- 6-section treatment table provides maximum patient comfort in prone and supine positions for manual and traction therapy
- Pelvic tilt section adjusts from 0° to 15° to provide flexion of the lumbar spine and help address pelvic asymmetry
- Head piece repositions from −30° to +40° to allow easy access to the thoracic and cervical spine
- Tuck-away grab bars for hanging traction without thoracic restraint
- Leg section adjustable from 0° to 45° with 4 in of leg displacement
- Gas springs assist friction-free movement of head, pelvic, chest, and leg sections — easily accessible from either side of the table
- Foot/hand controller for easy adjustment of table height, with a lockable safety mechanism
- Complete range of accessories to suit every patient need
Technical Specifications
-
Mains Power: 120 V~ 50/60 Hz
-
Current: Max 2A @ 120V
-
Overall table: 90.5 × 37 × 31 in (L × W × H)
-
Table plus traction arm: 109.8 in long
-
Total table length: 85.4 in
-
Head / Back section: 28 in
-
Middle section: 8.6 in
-
Pelvic section: 10 in
-
Leg section: 30 in
-
Cushion width: 27.5 in
-
Height adjustment: 19 in – 37 in
-
Angle inclination: Head −30° to +40° · Pelvic 0° to 15° · Leg 0° to 45°
-
Leg-section displacement: 4 in
-
Dynamic lifting capacity: 440 lbs
-
Maximum workload: 605 lbs
-
Patient weight capacity: 363 lbs
-
Table weight: 428 lbs
-
Shipping weight: 484 lbs
-
Shipment dimensions: 92.5 × 37.4 × 31.5 in (L × W × H)
-
Electrical safety class: Class I, Type B
-
Safety tests: CE, Class I rule 12
Documents
Use of this product is strictly reserved for healthcare professionals.
