Description

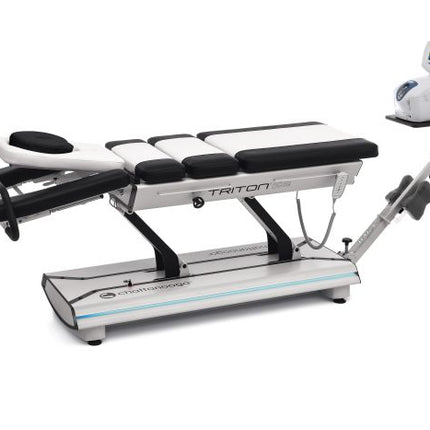

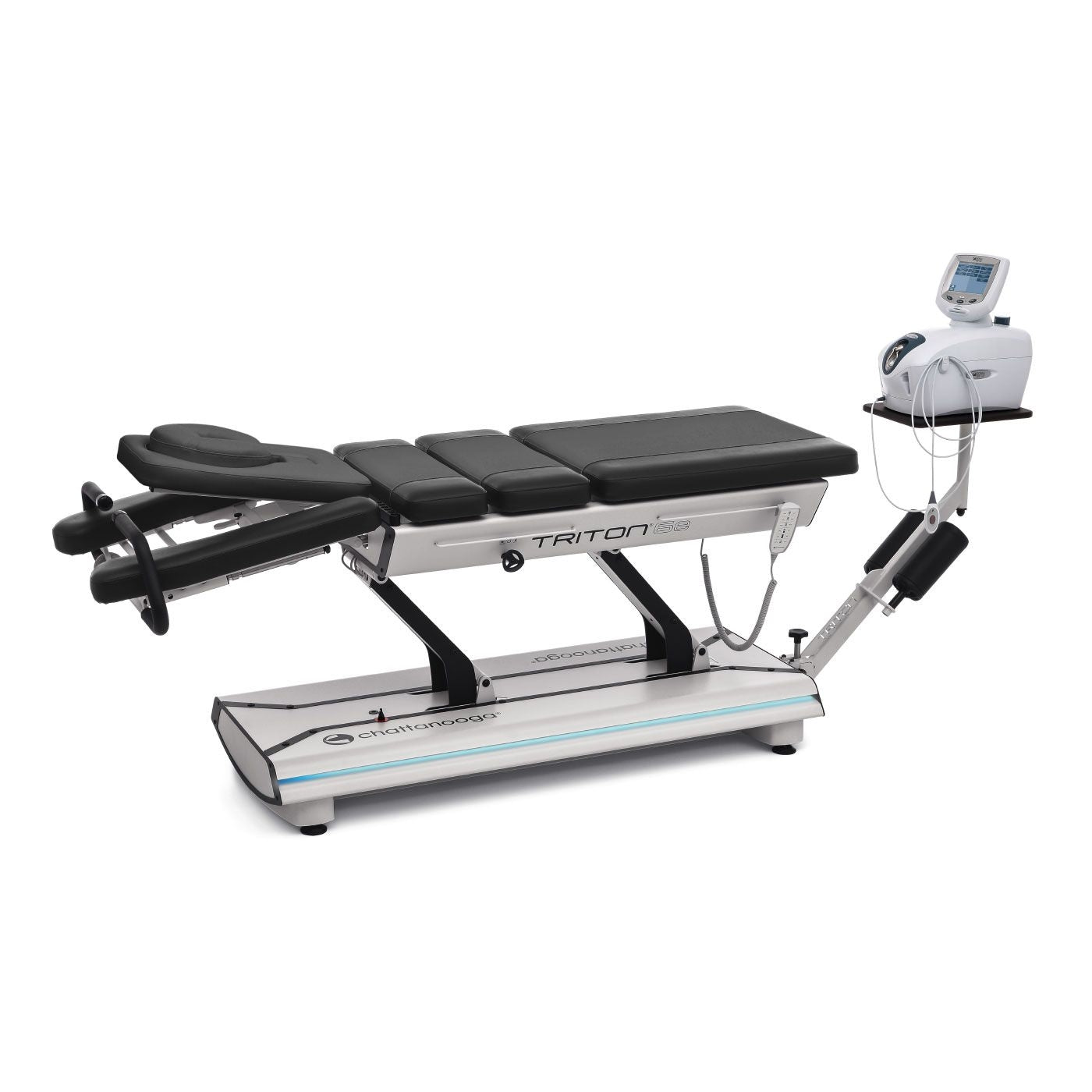

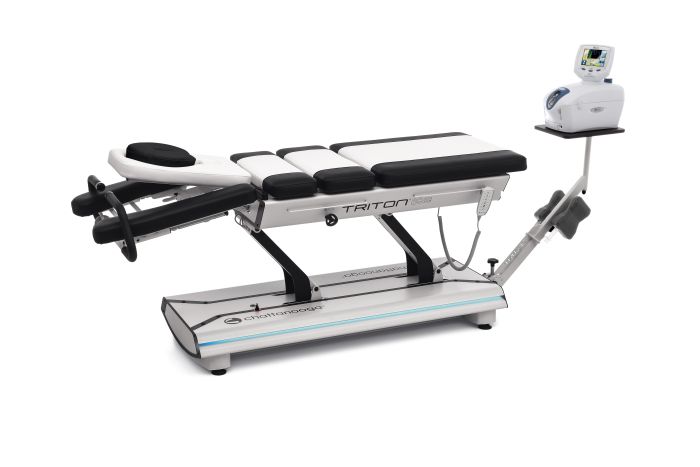

In modern medicine, spinal distraction is widely used to help relieve peripheral radiation/sciatica and pain associated with various spine injuries and pathologies. With more than 40 years of experience serving clinicians worldwide, Chattanooga introduces its next generation of spinal distraction treatment systems — and the Triton DTS 6E is the premium model in the Triton range.
Powered by six actuators, the 6E allows smooth adjustment of the head, pelvic, chest, and leg sections at the touch of a button. Fully electric and highly adjustable, when combined with a Triton DTS Traction Unit it delivers the best possible support for practitioners looking to push their traction treatment to the next level.
Upholstery: Available in Graphite Grey or Black. Blue and Black/Ecru are available as a special order — contact us before ordering.
Note: The Triton DTS 6E table is sold separately and does not include the Traction Unit or accessories. For a complete Triton DTS Traction package, see the Triton DTS Advanced (8250) or Basic (8245) Accessory Package.
Features & Benefits
- One of the most advanced electric traction tables — six actuators assist friction-free movement of head, pelvic, chest, and leg sections

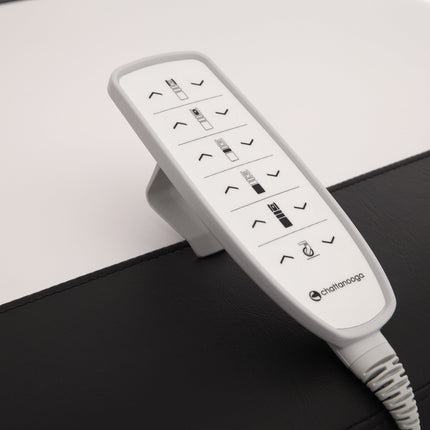

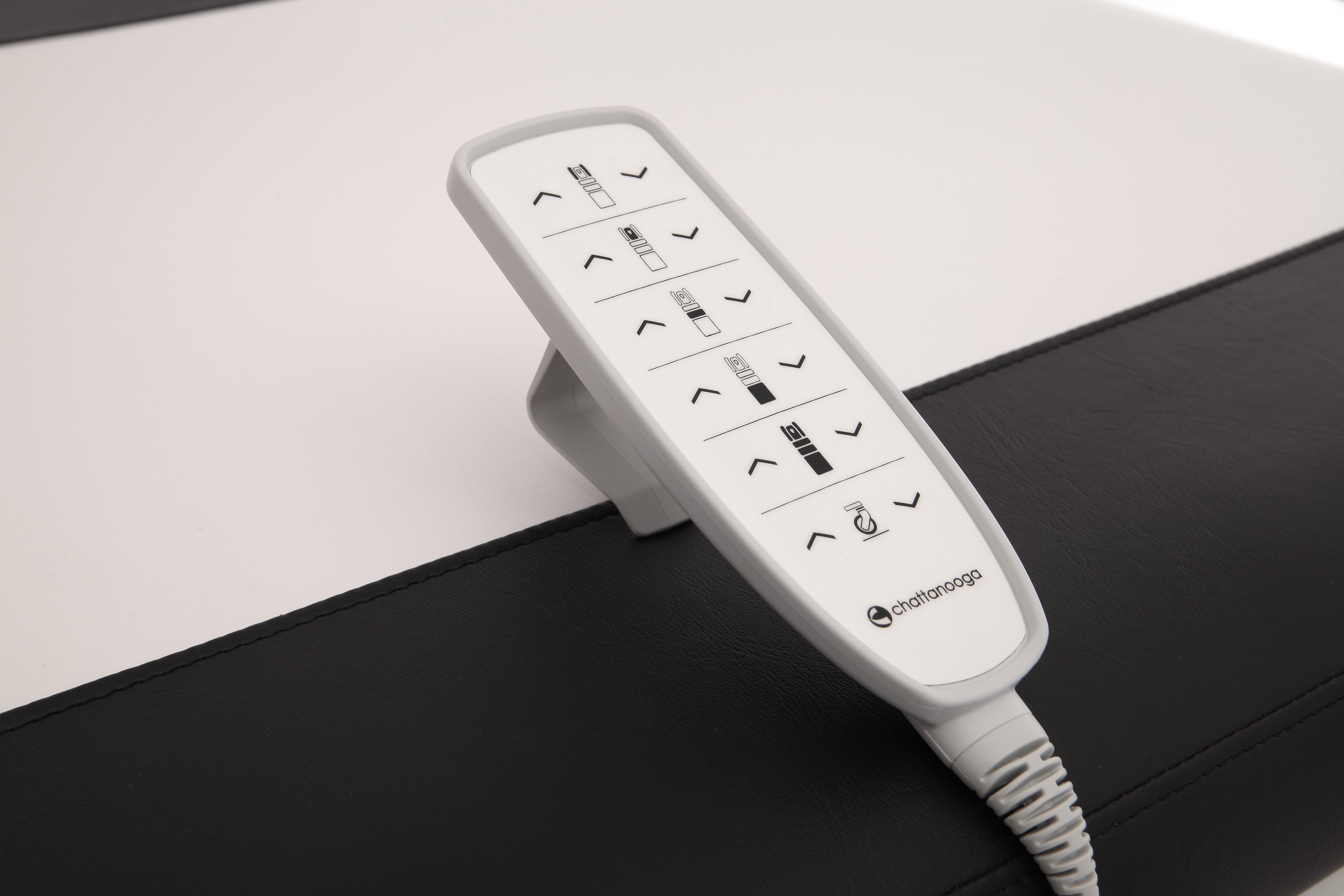

- Ideally positioned hand remote control allows for easy access around the table
- 6-section treatment table for maximum patient comfort in prone and supine positions for manual and traction therapy

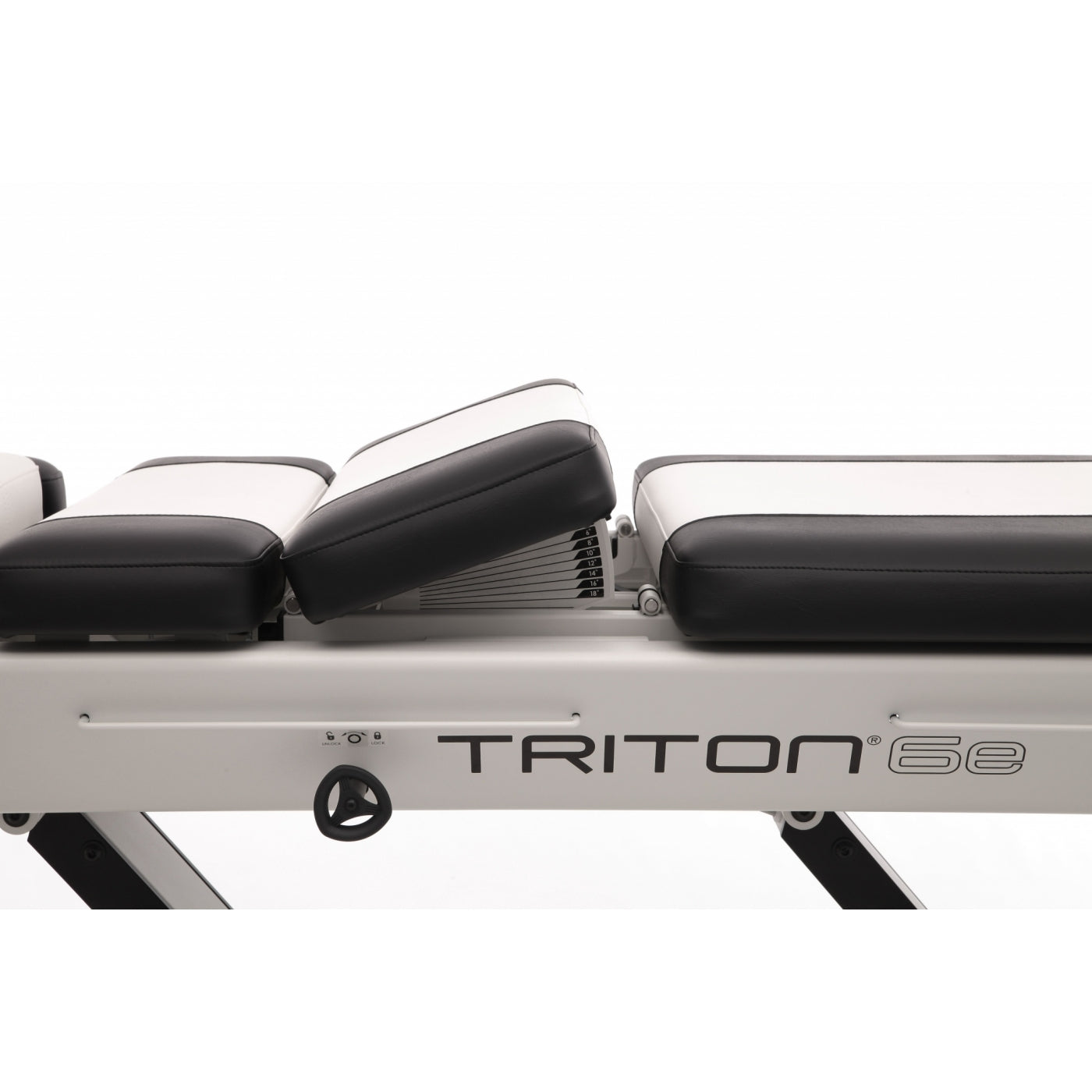

- Pelvic tilt section adjusts from 0° to 20° to provide flexion of the lumbar spine and help address pelvic asymmetry
- Head piece repositions from −30° to +40° for easy access to the thoracic and cervical spine

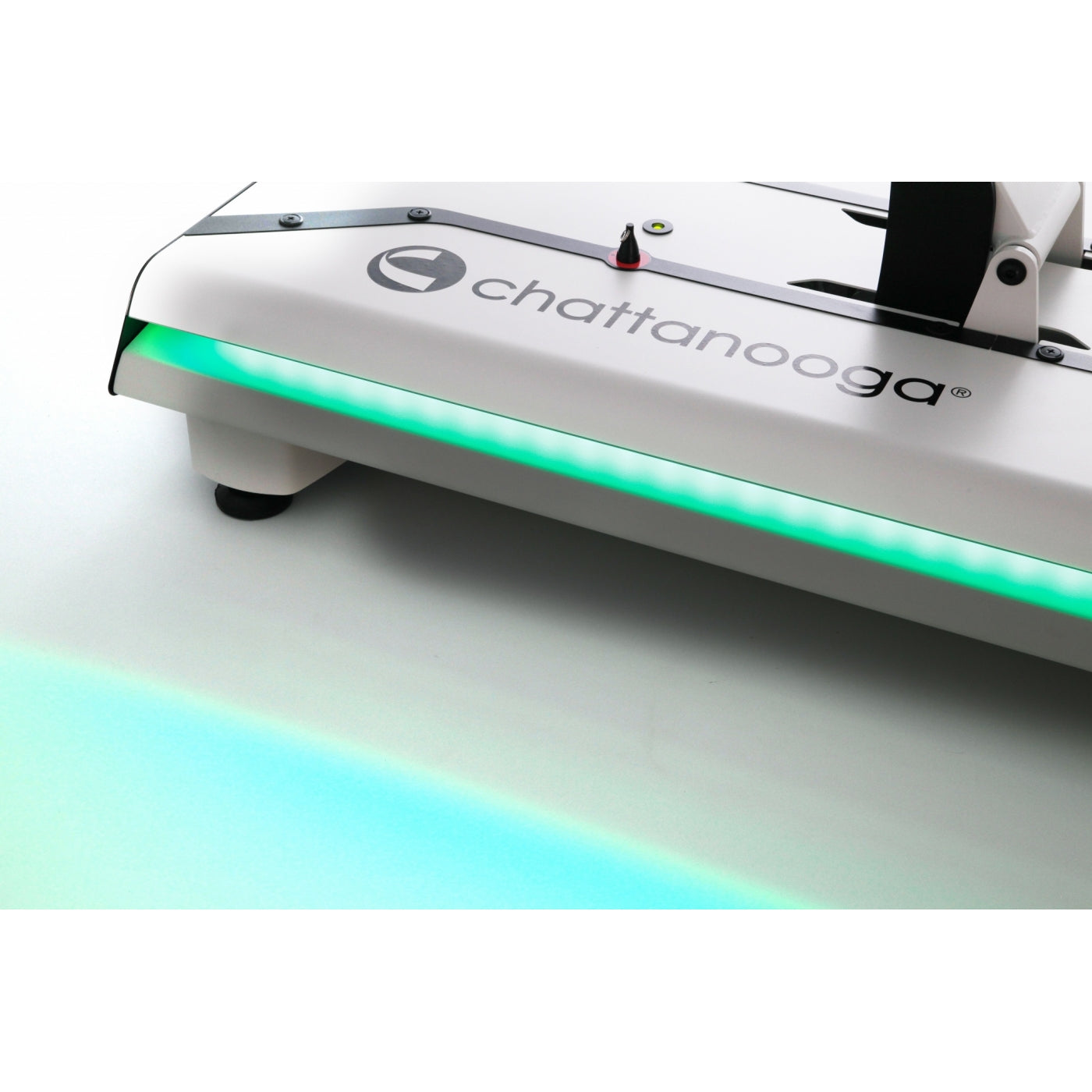

- Atmospheric LED light system in the table frame with cycling or fixed modes (7 colors + fade)
- Tuck-away grab bars for hanging traction without thoracic restraint

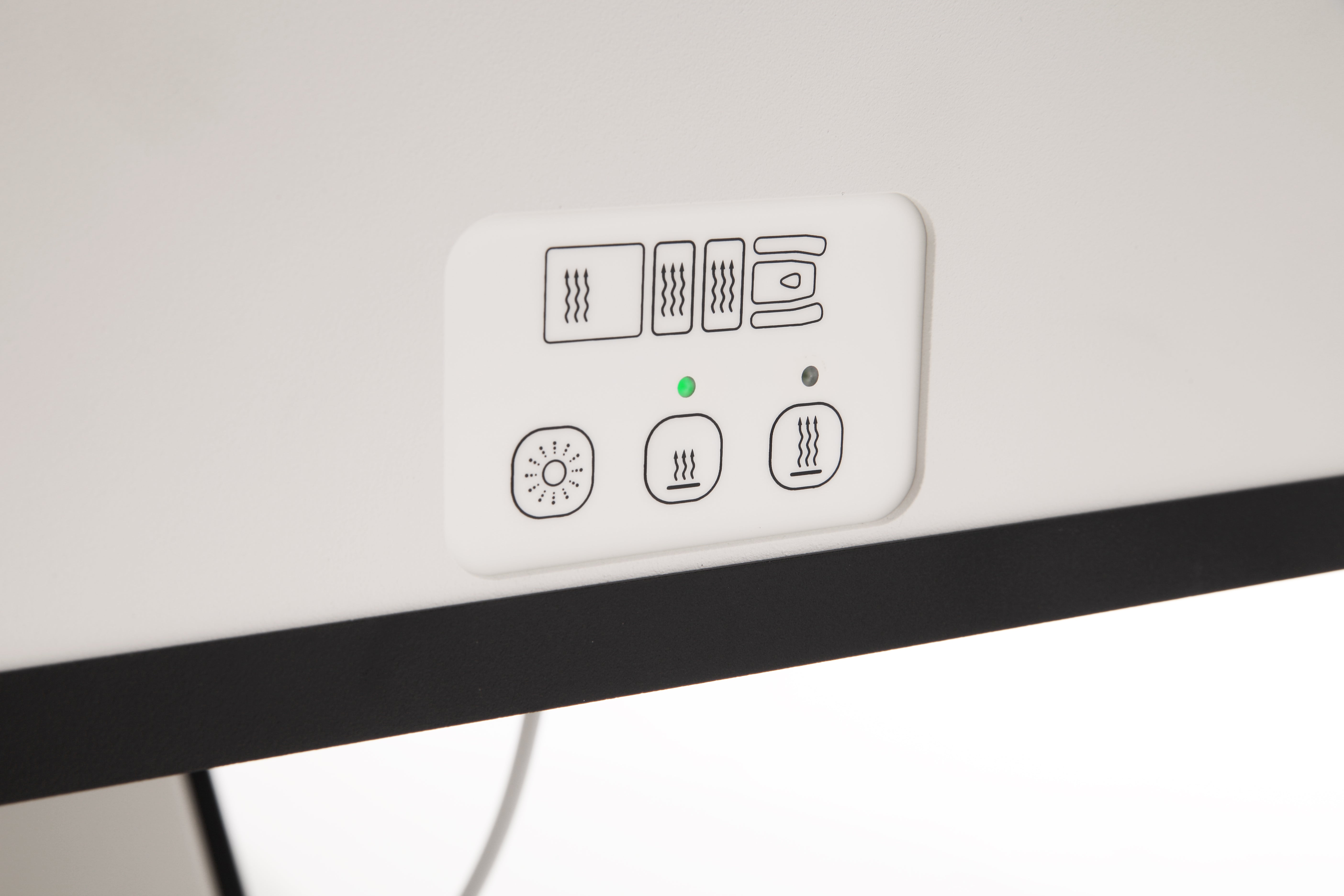

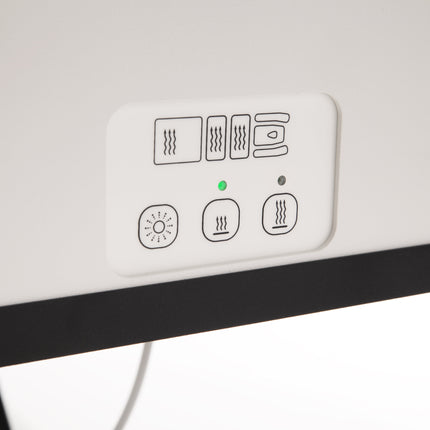

- Heated cushions (95° & 100.4°F) for greater patient comfort

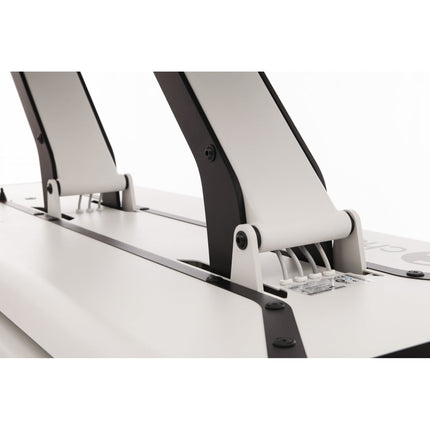

- Integrated cable and power-cord management
- Complete range of accessories to suit every patient need
Technical Specifications
-
Mains Power: 120 V~ 50/60 Hz
-
Current: Max 2A @ 120V
-
Overall table: 90.5 × 37 × 31 in (L × W × H)
-
Table plus traction arm: 109.8 in long
-
Total table length: 85.4 in
-
Head / Back section: 28 in
-
Middle section: 8.6 in
-
Pelvic section: 10 in
-
Leg section: 30 in
-
Cushion width: 27.5 in
-
Height adjustment: 19 in – 37 in
-
Angle inclination: Head −30° to +40° · Pelvic 0° to 20° · Leg 0° to 45°
-
Leg-section displacement: 4 in
-
Heating temperatures: 95°F & 100.4°F
-
LED lighting: 7 colors + fade option
-
Dynamic lifting capacity: 440 lbs
-
Maximum workload: 605 lbs
-
Table weight: 494 lbs
-
Shipping weight: 550 lbs
-
Shipment dimensions: 92.5 × 37.4 × 31.5 in (L × W × H)
-
Electrical safety class: Class I, Type B
-
Safety tests: CE, Class I rule 12
Documents
Use of this product is strictly reserved for healthcare professionals.
