Description

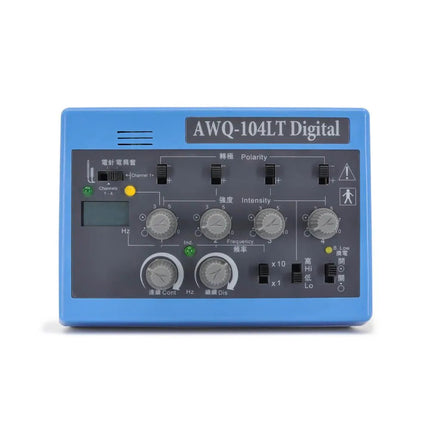

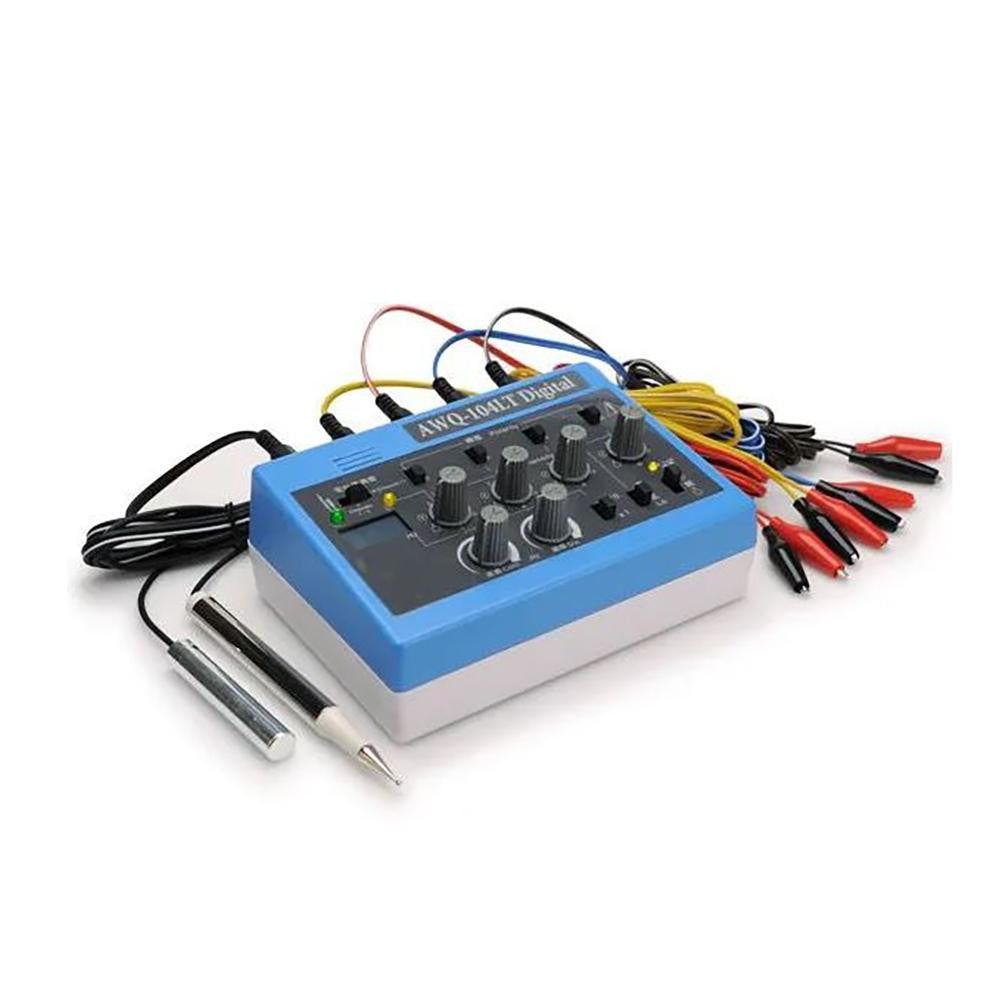

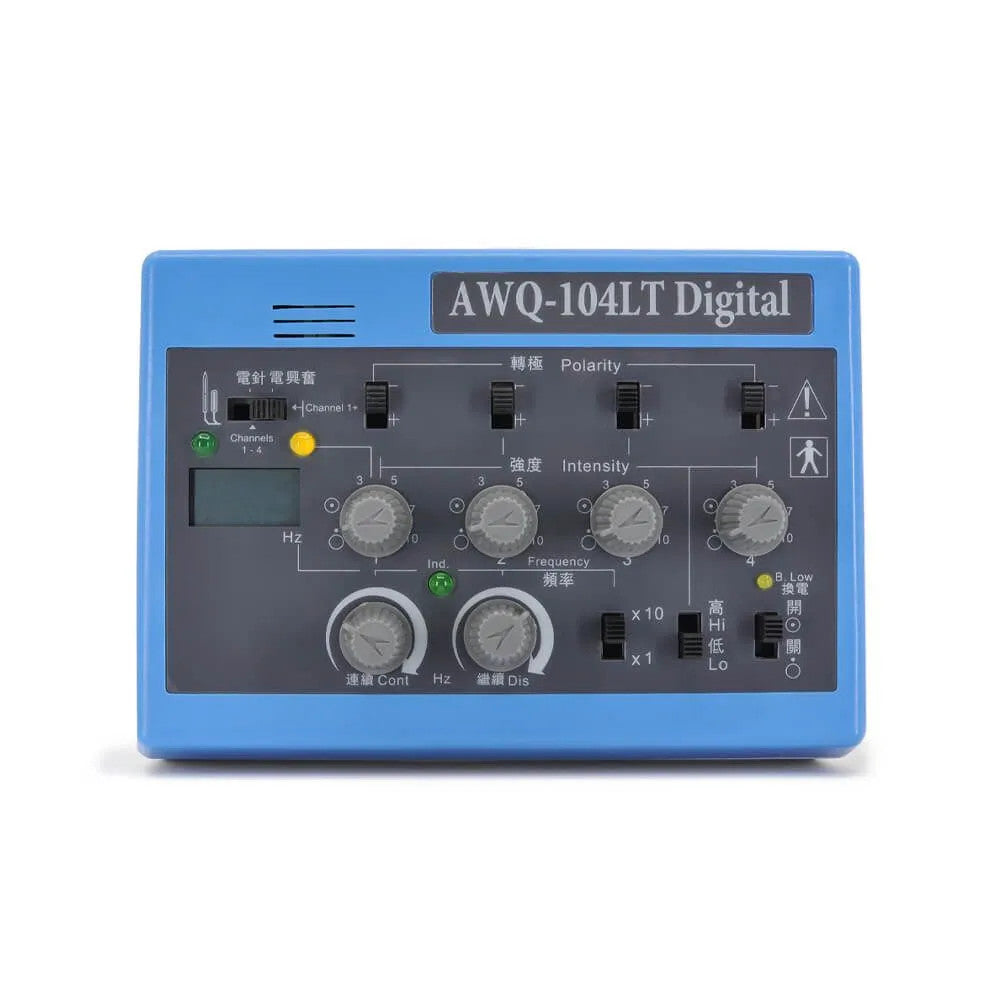

The AWQ-104LT is a multipurpose electroacupuncture and electro-therapy device with 4 outputs and a large LCD digital meter. Frequency is displayed and fine-tuned across two separate ranges, and four independently controlled channels provide stimulation to up to 8 needles. Integrated circuitry prevents interference and crossover between channels.
Specifications

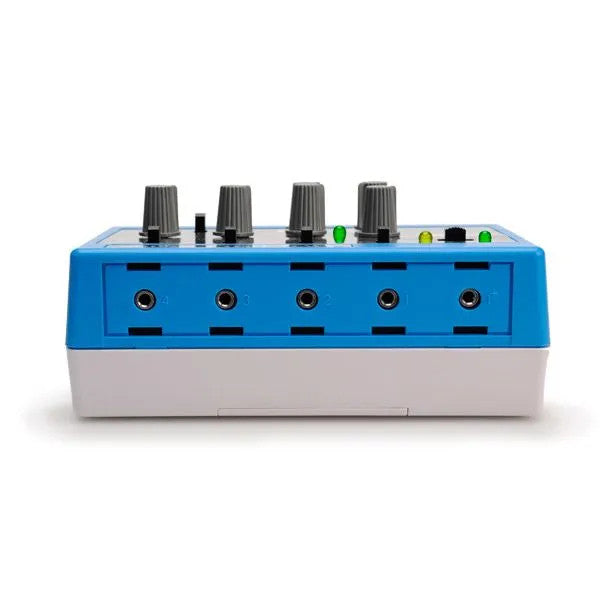

- Outputs: 5 channels total (1 hand probe + 4 intensity channels), up to 8 needles
- LCD frequency meter: 0.5" × 0.9"
- Frequency: x1 range 1–100 Hz, x10 range 10–999 Hz
- Low output: 0–9 V, 0–18 mA
- High output: 0–20 V, 0–40 mA
- Pulse width: 350 µs (x1), 40 µs (x10)
- Waveform: biphasic rectangular wave
- Pulse modes: adjustable, intermittent, dense-disperse
- Polarity reversal: tonification (+) / sedation (−) per channel
- Point location: skin impedance meter, 1–100 or 150 scale
- Power: one 9 V battery (not included)
- Low-power indicator: yellow LED
- Dimensions / weight: 6.2" × 4.2" × 2.5", 330 g, blue and white
- Tested at 500 ohm load
In the box

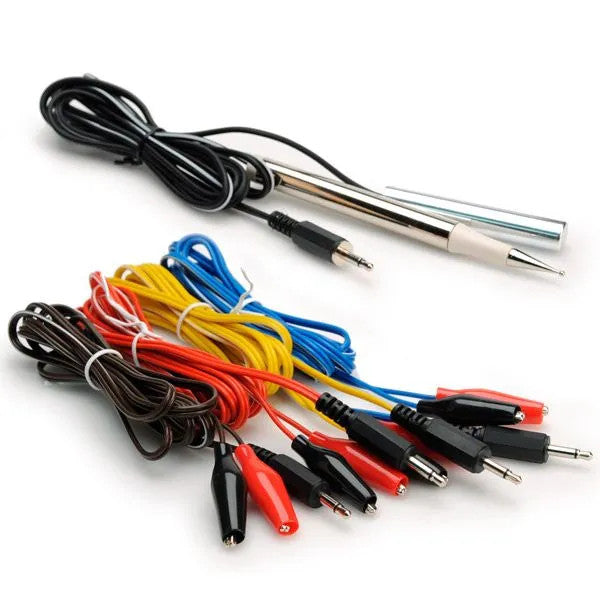

- 5" pen-shaped treatment probe with hand ground pole and wire
- 4 sets of alligator clip wires
- Sturdy carrying case and instructions
Warranty: 1 year from date of purchase. Made in China.
Regulatory note: Federal law restricts this device to sale by or on the order of a physician or other licensed practitioner.
